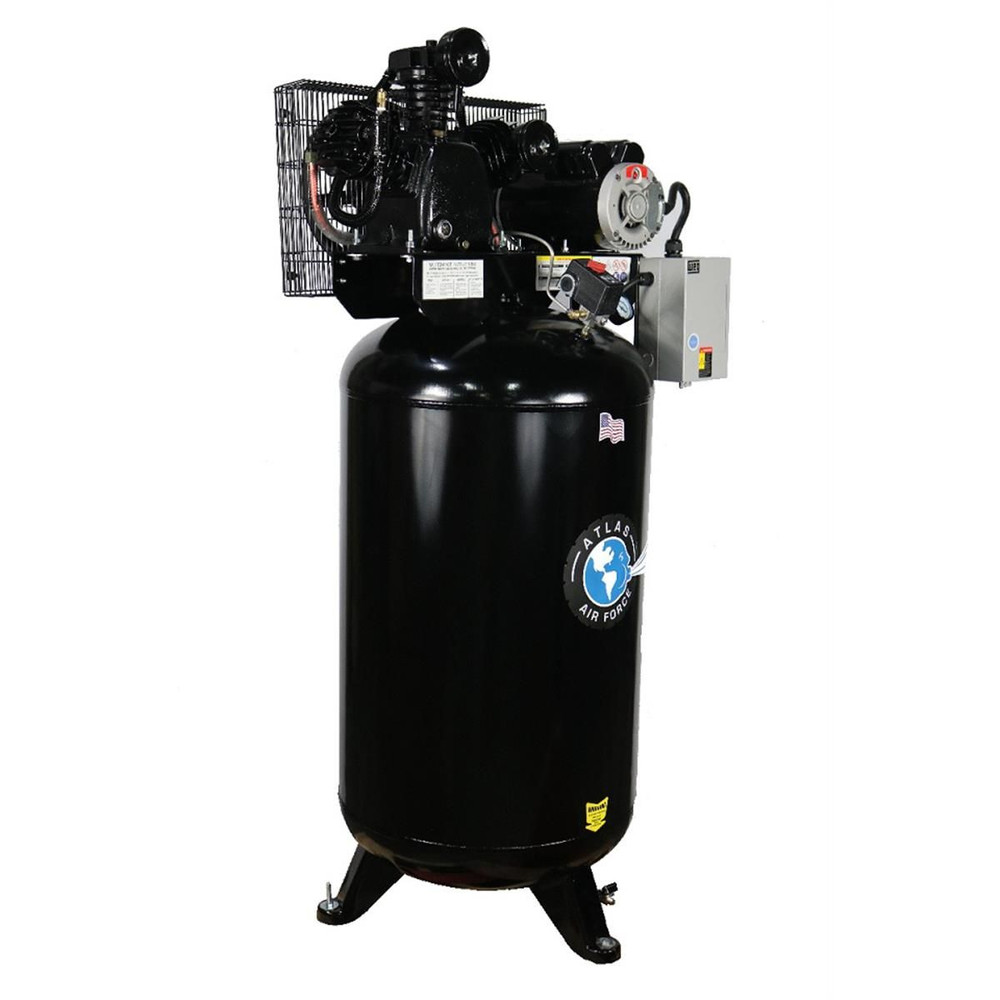

Atlas 5HP 80 Gallon Air Compressor w/Mag Starter

$2,599.00 $1,949.25

+ Free Shipping

Atlas 5HP 80 Gallon Air Compressor w/Mag Starter

The Atlas® Air Force AF7 is our entry level commercial grade two (2) stage vertical air compressor. This unit operates between 140 and 175 PSI. The combination of the commercial grade motor and the heavy duty 3 cylinder (2 cylinders are low pressure and 1 cylinder is high pressure) cast iron reciprocating air compressor pump delivers an incredible amount of air volume and air pressure for a very low price. The AF7 comes standard with a USA made 80 gallon steel tank and also includes a magnetic starter. The magnetic starter controls the electric input and adds to the longevity of the unit.

The Atlas® Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service. The Atlas® Air Force shop compressors are built to the same exacting standards as the entire line of Atlas® professional grade automotive equipment



Estimated Delivery Time: 7 - 12

Atlas 5HP 80 Gallon Air Compressor w/Mag Starter

Features and Benefits:

2-Stage Pump

5hp Motor

80 Gallon Vertical Tank (Made in the USA)

Air Output 90-175 PSI

Extremely Quiet Operation

Magnetic Starter Included

Set of Vibro-Isolation Pads Included

Hands free tank drain extension

Compressor oil drain extension tube

Finned tank inlet tube for reduced tank water accumulation

Heavy Duty Metal Belt Guard

Electric: 220volt/1phase

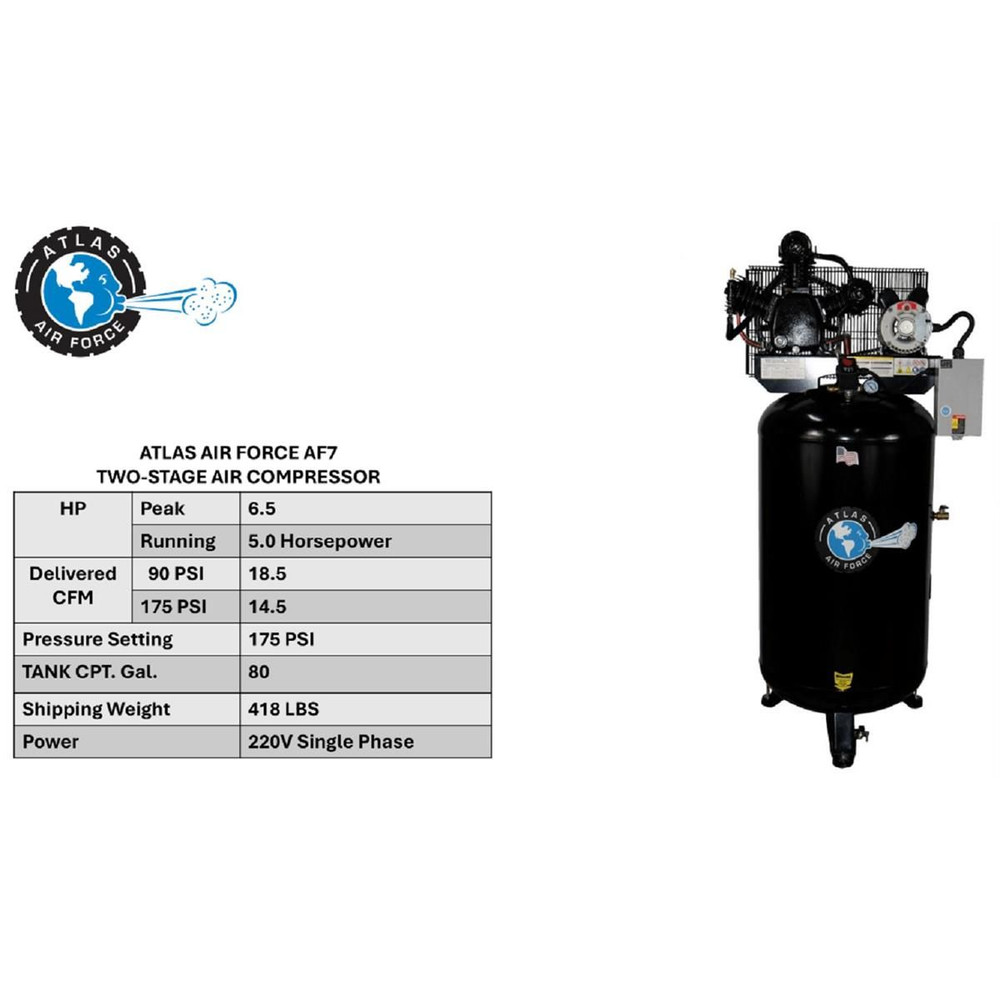

Atlas Air Force AF7 Specifications

Motor Running: 5 Horsepower

Pressure Setting: 90-175 PSI

Delivered CFM at 90 PSI: 18.5

Delivered CFM at 175 PSI: 14.5

Tank Capacity: 80 Gallons

Compressor Pump: 3 Cylinder, 2-Stage

Air Outlet Size: 1/2″ NPT

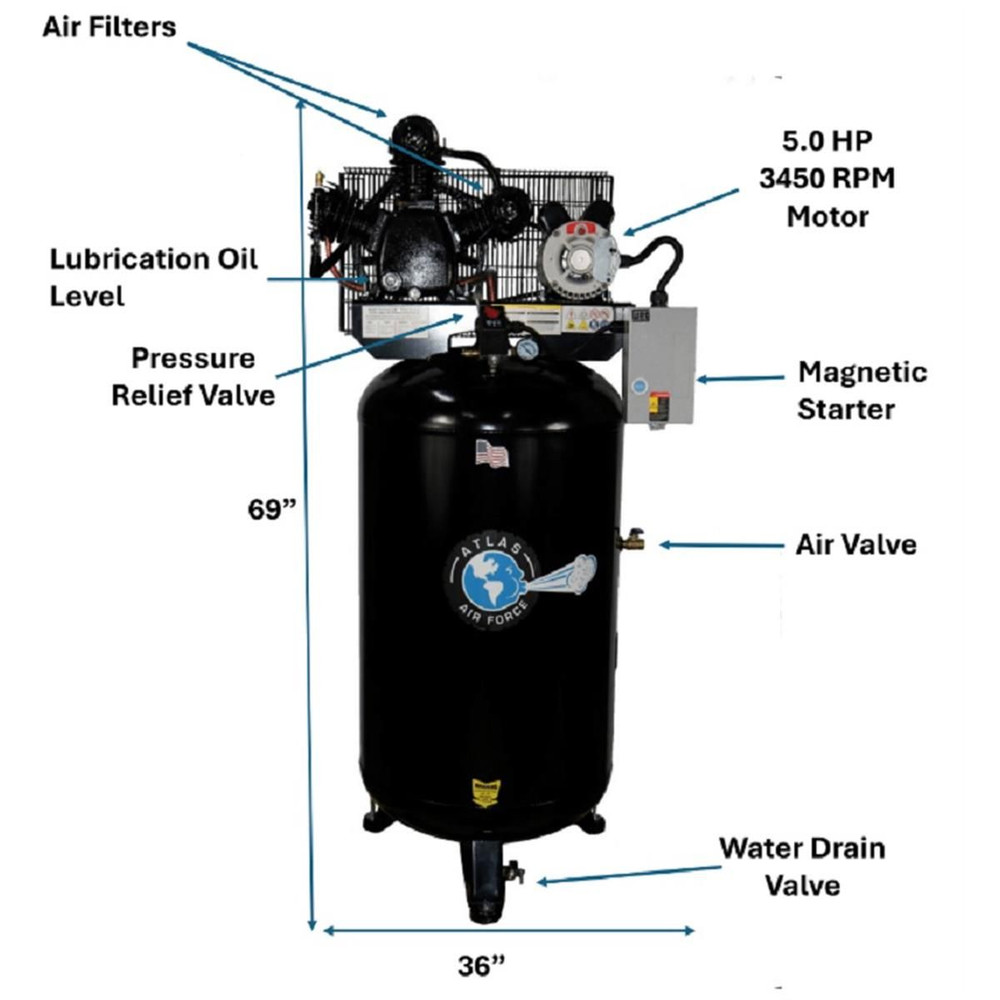

Overall Dimensions: L 36″ x W 24″ x H 69″

Motor/Electrical Requirement: 220volt Single Phase, 30 amp breaker required

Shipping Weight: 485 lbs
