Mahle ArcticPRO ACX2150 R134a Refrigerant Handling System

$4,379.00 $3,284.25

+ Free Shipping

Mahle ArcticPRO ACX2150 R134a Refrigerant Handling System

Estimated Delivery Time: 7 - 12

Mahle ArcticPRO ACX2150 R134a Refrigerant Handling System

FEATURES

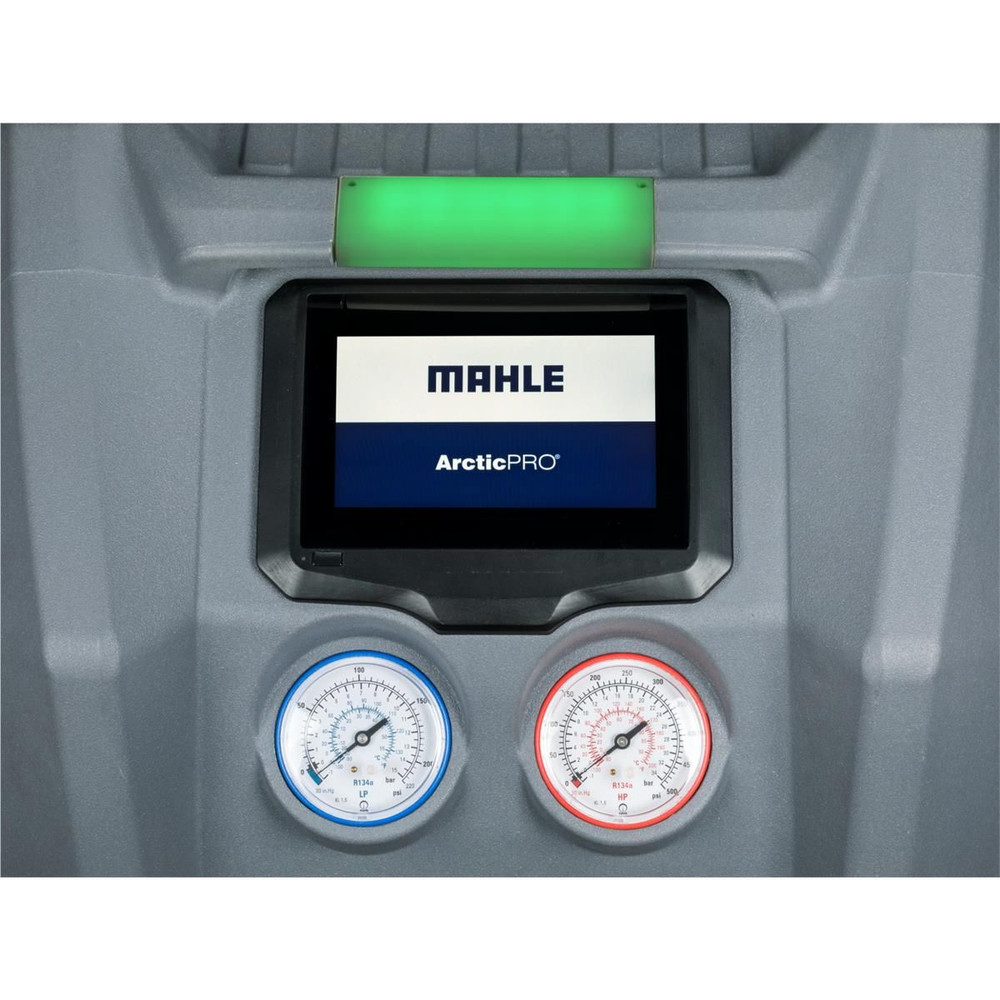

State-of-the-art, ergonomic design, 7″ capacitive touch LCD display, and intuitive user interface sets a new industry standard

LED light indicates status visible from anywhere in the workshop

Best-in-class serviceability with a new ergonomic hinged service door simplifies unit service

Automatic updates and permanent wireless software updates, ensuring you always have the latest features

Oil system management offers automatic weighing of recovered oil with on-board oil-injection allows accurate replenishment of oil removed during service

Integrated UV dye injection provides high level of A/C system leak detection

Remote support for technicians allows MAHLE to connect to a unit over WiFi for troubleshooting and advanced support

Data management and reporting metrics offer the ability to log and monitor services allowing analytics for proactive service reminders, refrigerant use optimization, warranty reporting and more

Every unit is built to be easily repaired by the owner and we proudly offer nationwide service centers and lifetime phone support coverage

Network printing capability retains valuable service records, network printing capability to print services provided for customer

OPTIONAL FEATURES

Thermal printer allows printing of service reports

iOS and Android capable phone app allowing remote service session mirroring and advanced functions

Product Specifications

Certifications: SAE J2788, SAE J2099, UL 1963

Charge Performance: +/- 0.5 oz. at 70° to 75°F (+/- 15g at 21° to 24°C)

Recovery Performance: 95% at 70° to 75°F (21° to 24°C) within 30 minutes

Operation: Fully Automatic

Charging Cylinder: 30 lb. (13.6 kg) DOT

Compressor: 3/8 HP-0.279kW

Dimensions (H x W x D): 47 in x 29 in x 29 in (119 cm x 74 cm x 74 cm)

Weight: 215 lb. (98 kg)

Display: Color, 7” Capacitive Touch Screen

Filter Drier Capacity: 200 lb. (91 kg) spin-on type

Hoses: 9 ft. (2.75 m)

Languages: English, French, Spanish

Operating Ranges: 50° to 122° F (10° to 50° C)

Power Source: 120 VAC – 60 HZ – 12 AMP

Printer: Optional

Vacuum Pump: 1.8 CFM dual stage
