iDEAL MSC18KX-LTVAK Light Vehicle Adapter Kit 20,000 lbs. ALI Certified
iDEAL MSC18KX-LTVAK Light Vehicle Adapter Kit 20,000 lbs. ALI Certified - Image 2
iDEAL MSC18KX-LTVAK Light Vehicle Adapter Kit 20,000 lbs. ALI Certified - Image 3
iDEAL MSC18KX-LTVAK Light Vehicle Adapter Kit 20,000 lbs. ALI Certified - Image 4
iDEAL MSC18KX-LTVAK Light Vehicle Adapter Kit 20,000 lbs. ALI Certified - Image 5
,

iDEAL MSC18KX-LTVAK Light Vehicle Adapter Kit 20,000 lbs. ALI Certified

$1,180.00 $885.00

+ Free Shipping

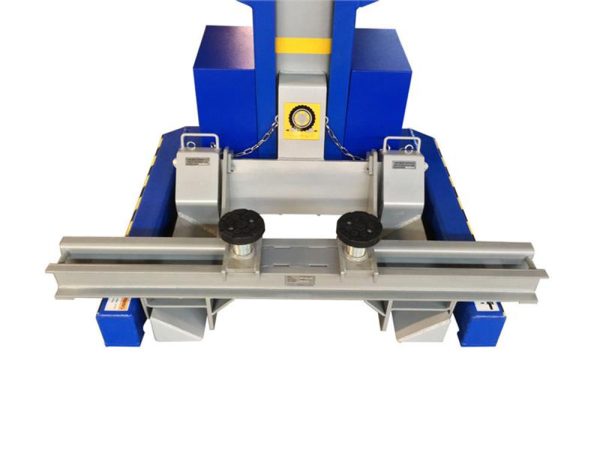

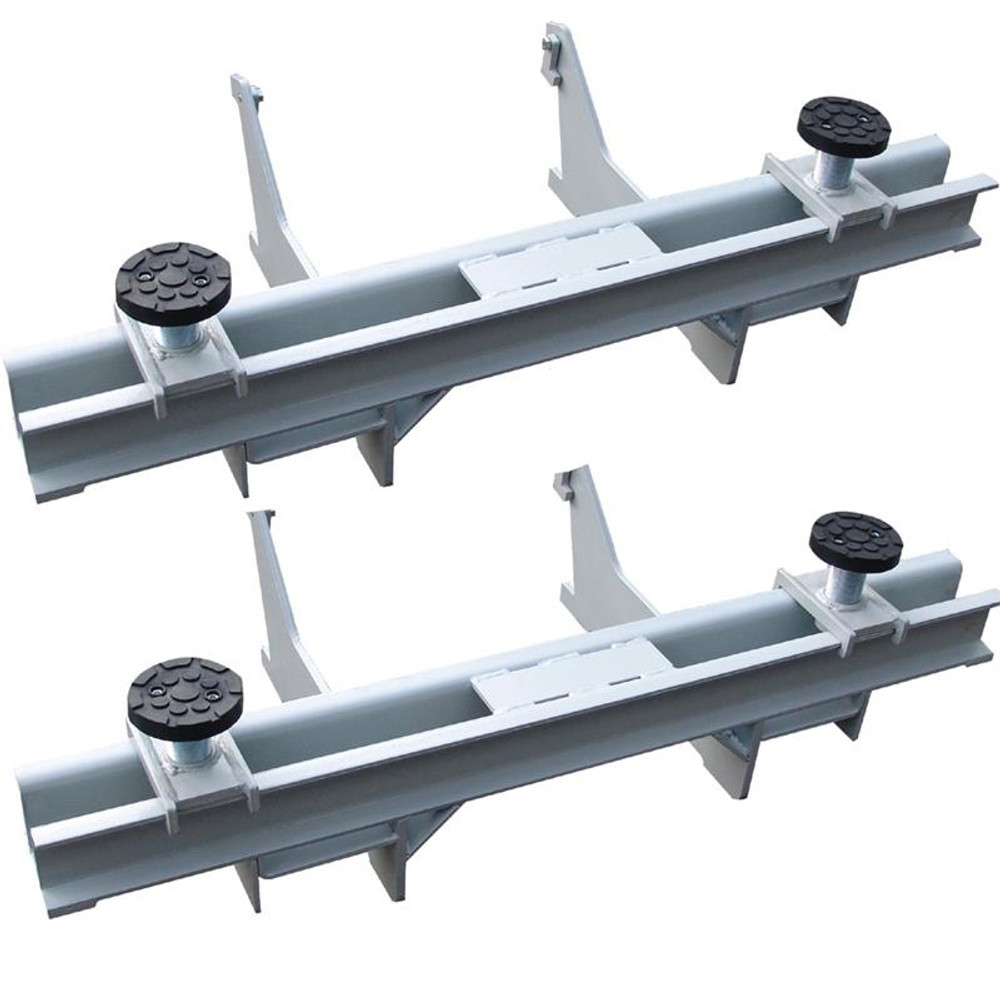

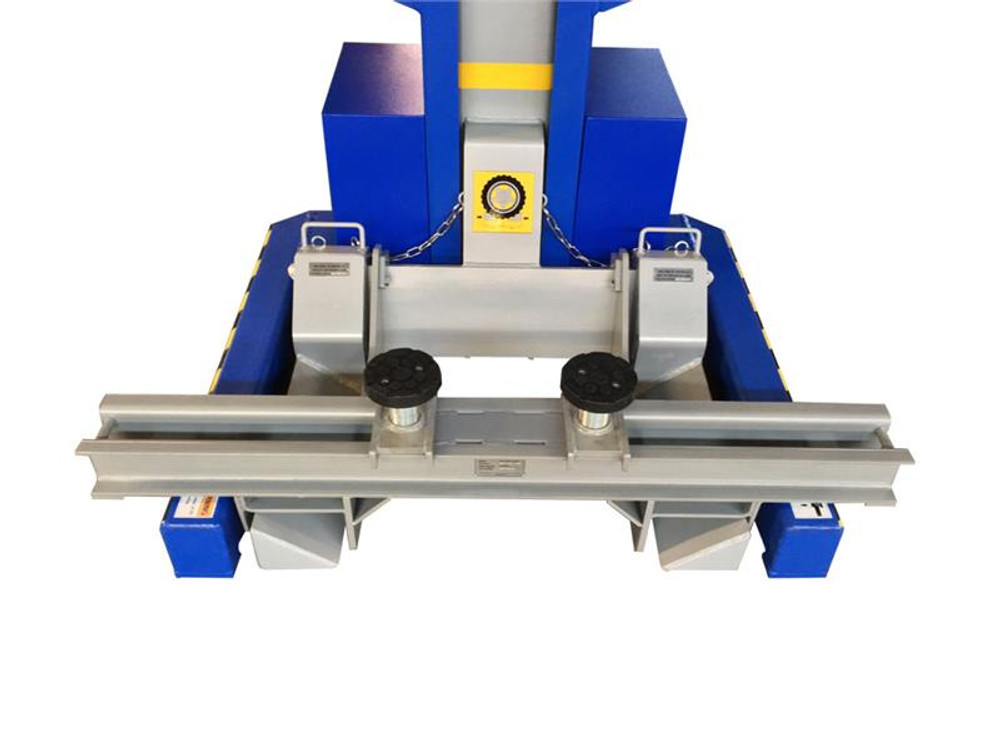

The MSC-18K-X Light Truck Vehicle Adapter Kit allows for frame engaging wheels free end lifting for many full size pick up trucks. The MSC18KX-TLVAK comes with heavy duty swivel pads with 2 3/4″ of adjustment. The MSC18KX-LTVAK is designed to be used in pairs only with the MSC-18K-X-236 Two Column configuration.

Estimated Delivery Time: 7 - 12
  • ALI Certified
  • 20,000 lbs MAX Support Capacity (10,000lbs per Adapter)

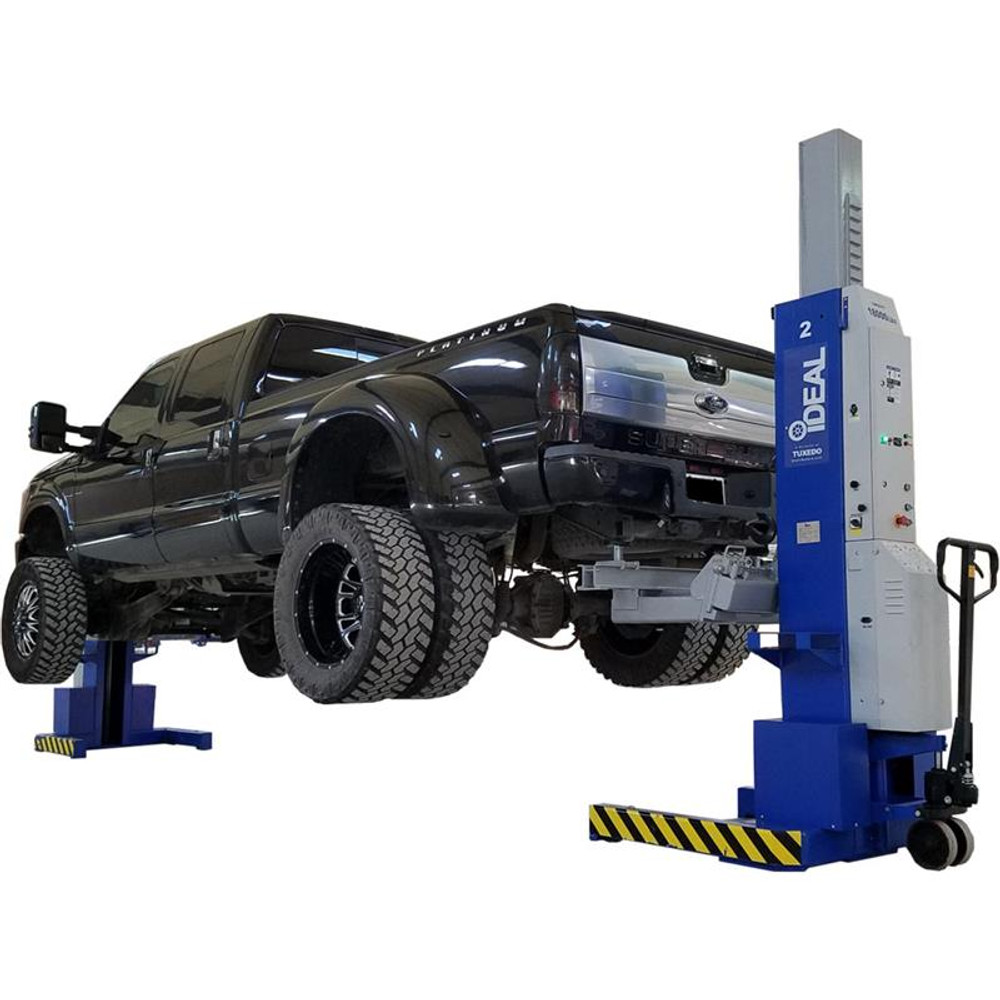

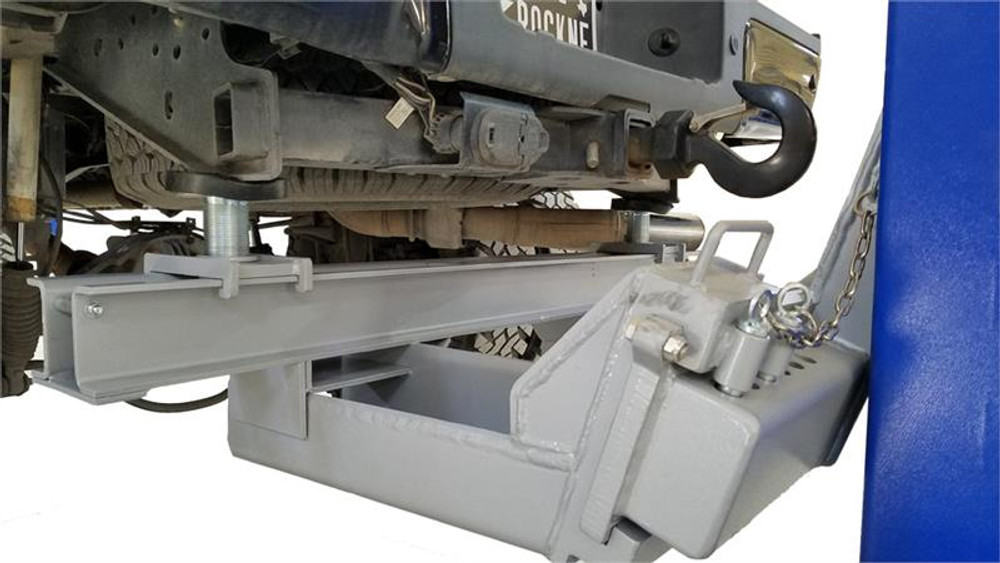

  • Allows for wheels free service with frame-engaging lifting
  • Frame-engaging ‘end’ lifting for front & rear of most vehicles
  • Requires Two MSC-18KX Column Operation
  • Adjustable width pillar supports
  • Standard HD swivel/rubber contact pads
  • Used in pairs only with two column lift configuration
  • Works only with MSC-18KX Lift



Specifications

Capacity 20,000 lbs. (10,000 lbs. per Adapter)
Min/Max Pad Width 12″ – 48″
Min/Max Pad Heights 13″ – 15″
Overall Length 121″
Overall Width 52″
Overall Width 24″
Pad to Column 23″
