Additional Features:
- 10,000 lbs. capacity for raising most passenger cars, trucks and vans.
- The I10 has been third party tested by ETL and approved by ALI.

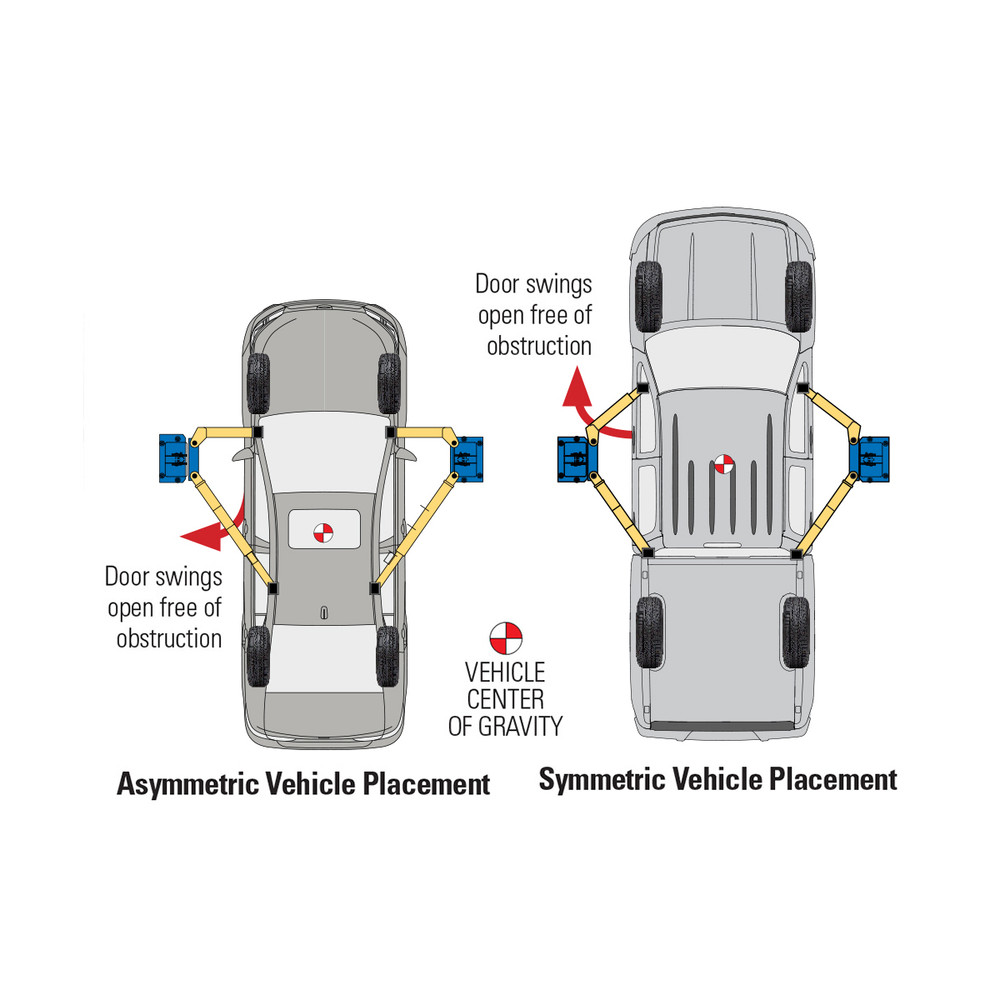

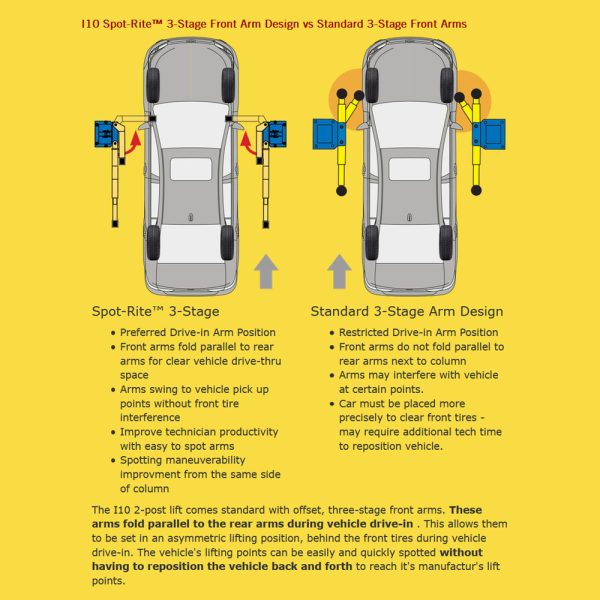

- 3-stage front arm design enables you to position doors in front of the column or behind to avoid door damage.
- Includes adjustable frame contact adapters.
- Adapter storage bracket kit.

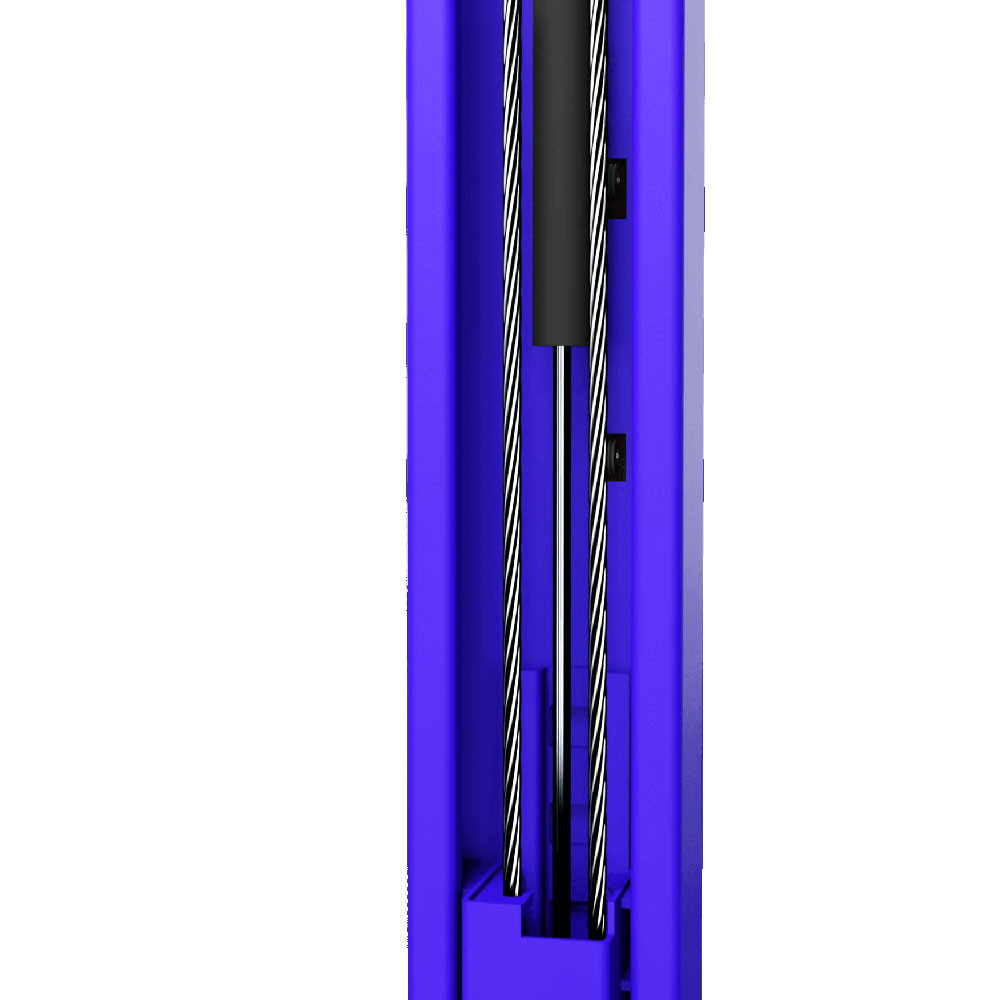

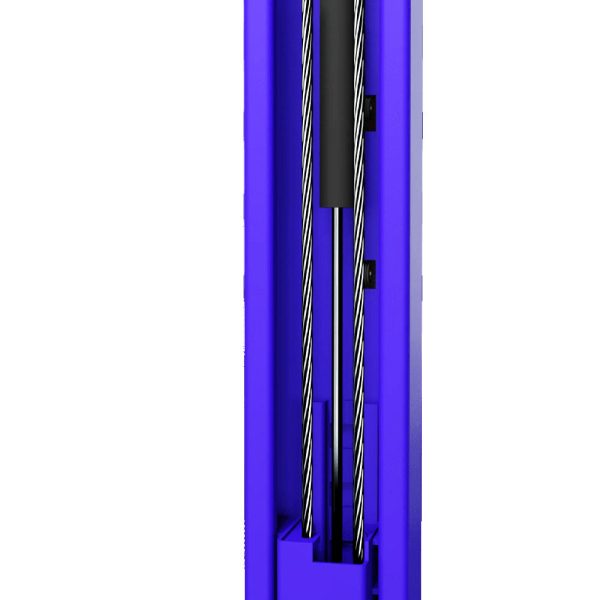

- Hydraulic cylinders in each column:
- Top-mounted | Direct pull lifting technology | Cylinder rod concealed inside the carriage
| Specifications | I10N400MBL |
|---|---|
| Capacity | 10,000lbs |
| Max. Rise w/5″ extension | 76-1/4″ |
| Overall Height | 143″ (3632mm) |
| Overall Width | 131″ or optional 137″ (3327mm / 4380mm) |
| Drive through clearance | 99″ or optional 105″ (2515mm / 2667mm) |
| Overhead switch height | 137-5/8″ (3496mm) |
| Front reach (Min/Max) | 23″ / 44-1/2″ (584mm / 1130mm) |
| Rear reach (Min/Max) | 36″ / 58″ (914mm / 1473mm) |
| Min/Max Adapter Height | 3-3/4″ (95mm) no adapter extension8-3/4″ (222mm) w/5″ adapter extension |
| Width Inside Column | 109″ or optional 115″ |
| Ceiling height required | 12′ |
| Voltage/Amps | 208-230V, 17 amps |
| Motor/Phase | 1PH / 2HP / 60Hz |
| Ceiling height required | 144″ (3658mm) |
| *Lifts available in blue and red. Specifications subject to change without notice or liability |
