Boxed Steel Construction and Sleeve Containment
Dannmar’s D4-9X features extended-height versions of strong boxed-steel columns (4.75″ x 4.75″ wide) to ensure maximum durability and resistance to tough use. The 5/8″ thick, 12″ x 12″ baseplates provide superior support for loads on most floor surfaces. Full-perimeter exterior steel sleeves are used for retaining solid capture of the lift columns, so vehicles remain safe and supported at all times. The Dannmar design cradles the steel sleeves to create an interlock that keeps everything secured.
Space Efficient
With the extended dimensions for long-wheelbase vehicles, the D4-9X makes efficient use of your shop’s floor space. Dannmar’s excellent use of room is unequalled, which is why Dannmar recommends this car lift in both shop and residential settings.
Controlled Operation
Dannmar gives operators more confidence with straightforward and easy controls. This extended-height lift truly goes the distance faster than ever—just 55 seconds to max rise!
Multi-level locking positions

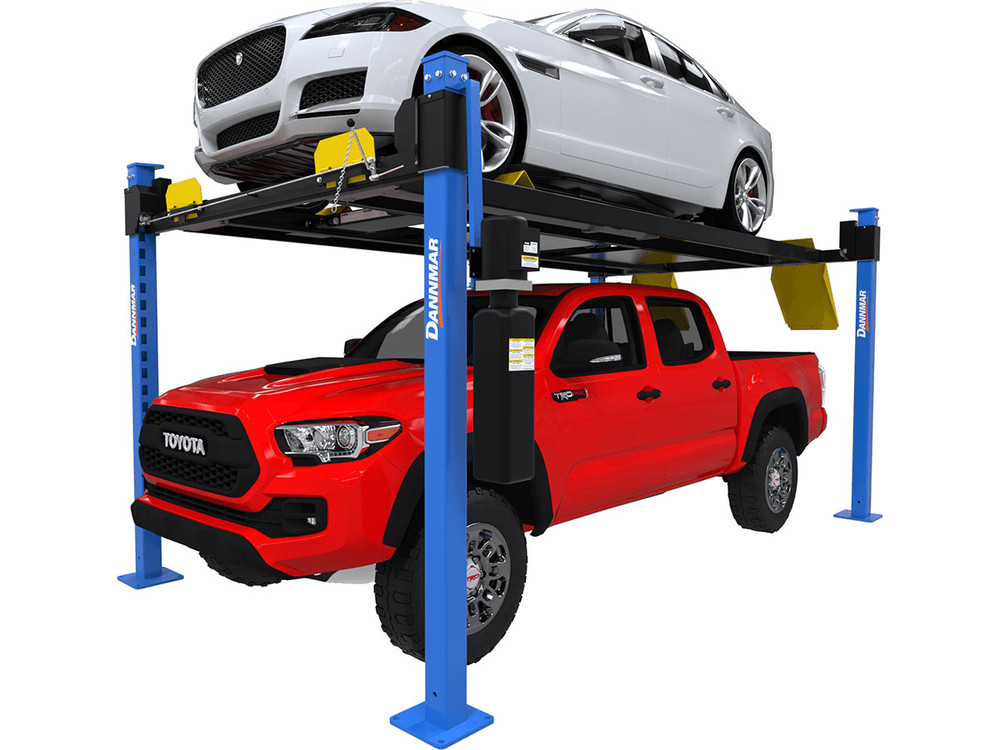

Sixteen locking positions are spaced every four inches to accommodate varying ceiling and vehicle heights. For more room under the vehicle or to park taller trucks and SUVs, the D4-9X features three added locking positions. This provides 12 inches of extra rise compared to the standard-size D4-9 four-post lift.
Heavy-Duty Aircraft Wire Rope
Dannmar’s D4-9X lift features four lifting wire ropes made from superior-grade stainless steel. Each of the four wire ropes is rated to support 14,000 lbs. The combined four wire rope rating is many times above the lift’s rated capacity.
Automatic Safety Locks
Four mechanical, 3/4″ thick safety locks engage simultaneously as the lift is raised. At all times, locks are securely trapped by the cross tube sleeves, so they don’t become dislodged or disengaged. A redundant backup slack-cable lock ensures instant lock engagement.
Dannmar Means Superior Service
The D4-9X delivers performance, and Dannmar’s longstanding reputation as a leader in lift technology is proof that we can back it up. If you need customer support, Dannmar’s team is here to assist. We’re glad to put our half-century of experience in the lift industry to the test!
Service you can depend on and Dannmar’s dealers and service providers deliver:
- Genuine Dannmar OEM parts
- Planned maintenance
- Convenient national locations
- Three-Year Warranty
Dannmar offers more than just car lifts: We want you to know you’re getting the absolute highest quality product at the best value. Dannmar’s lifts are backed by Dannmar’s standard 3-year warranty.
Features
- CE Approved and Certified
- Meets or exceeds the standards prescribed by European Standard EN-1493
- Mid to long-style approach ramps for low-ground clearance vehicles
- Runways include rail-kit for optional accessories
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks and sheaves
- Internal anti-sway slider blocks in each column
- Pneumatic push-button safety release
- Heavy-duty 1/2” aircraft cable and 1.75” roller axles
- Safety locks enclosed in columns minimize pinch points
- Oversized sheave diameter reduces cable fatigue
- Large self-lubricating cable rollers
- Multi-position safety locks in each column
- Customizable power unit location
- Approach ramps incorporate built-in rear-wheel chocks
- Independent backup slack-cable safety latches
- Runways feature non-skid surface
- Optional drive-thru ramps available
- Optional drip trays available
- Optional 6,000-lb. capacity rolling jacks available to raise front or rear of vehicle
- ETL approved
What’s inside?

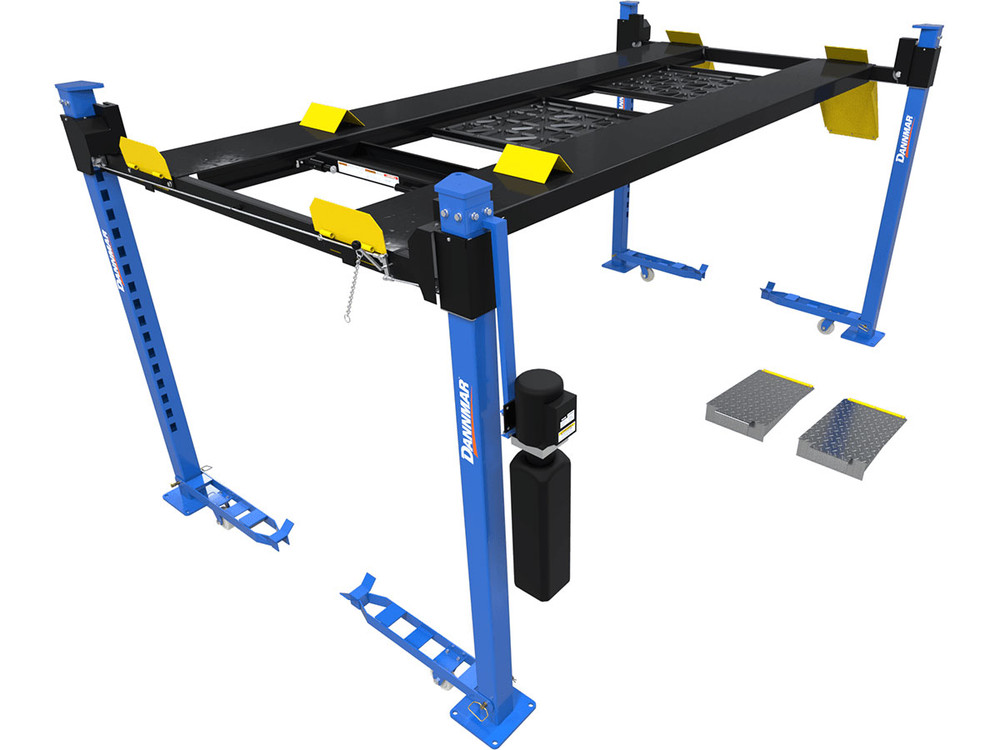

- (1) D4-9X four post lift complete

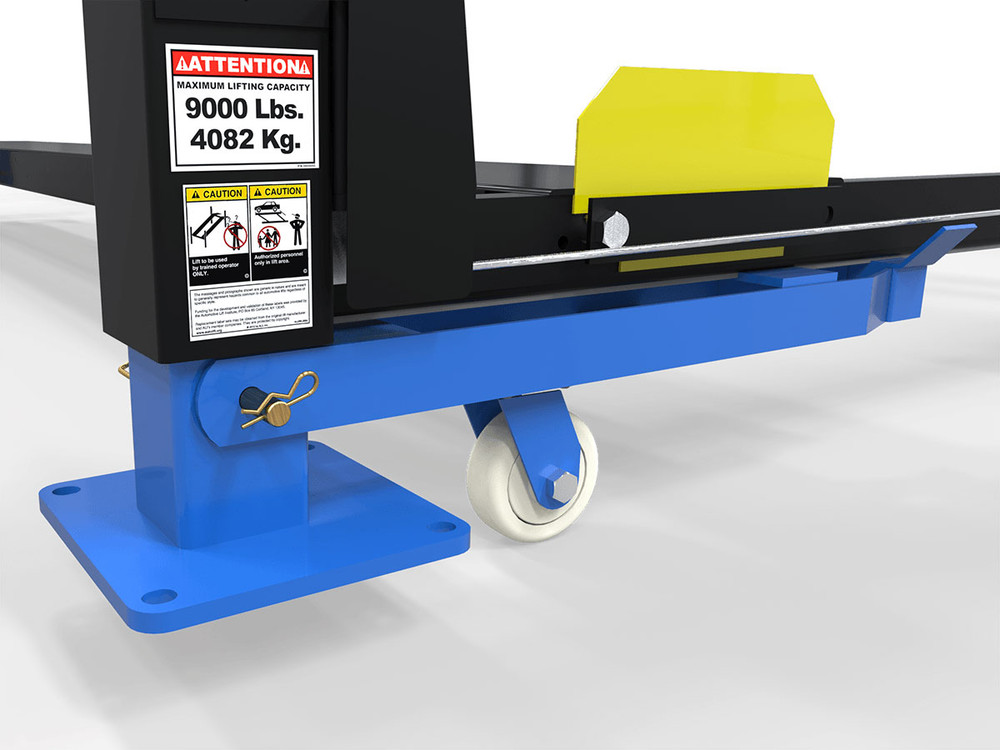

- (1) Caster Kit

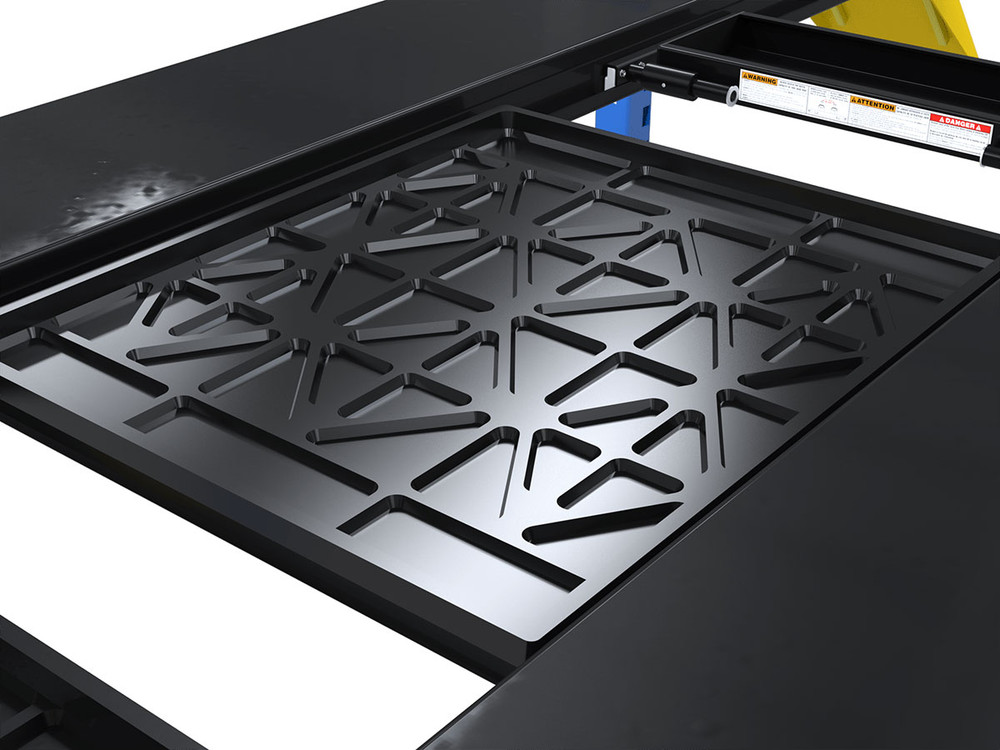

- (1) Set Plastic Drip Trays

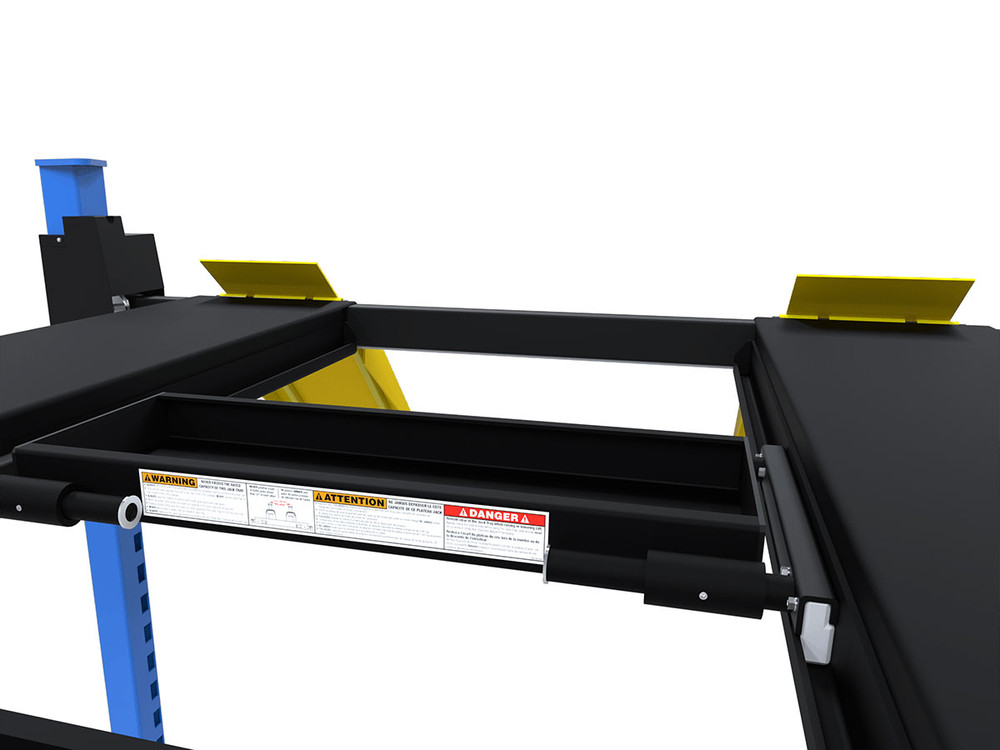

- (1) JP45 Sliding Jack Tray

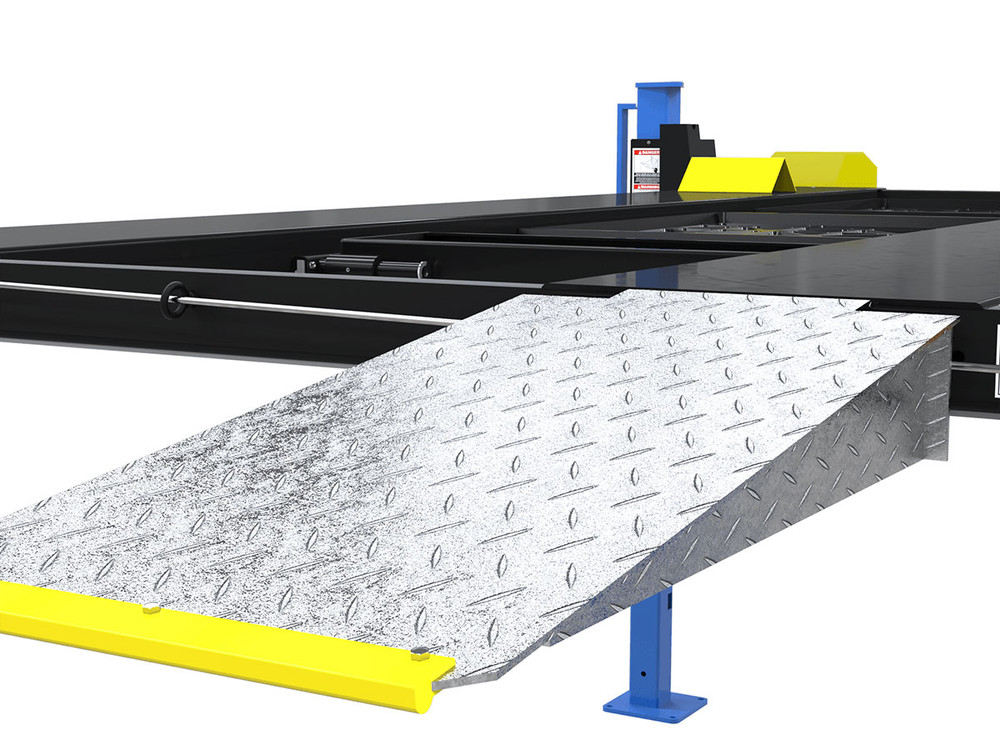

- (1) Set Aluminum Approach Ramps
Specs
| SKU# | 5175321 |
|---|---|
| Lifting Capacity | 9,000 lbs. (4,082 kg) |
| A – Min. Runway Height | 5” (127 mm) |
| B – Max. Rise | 82” (2,083 mm) |
| C – Max. Lifting Height | 87” (2,210 mm) |
| D – Height of Columns | 99” (2,515 mm) |
| E – Drive-Thru Clearance | 86” (2,184 mm) |
| F – Overall Width | 114.5” (2,908 mm) |
| G – Width Between Columns | 98” (2,489 mm) |
| H – Overall Length | 227” (5,766 mm) |
| I – Outside Columns | 200.5” (5,093 mm) |
| J – Width Between Runways | 37.5” (953 mm) |
| K – Runway Centerline | 53.75” (1,365 mm) |
| L – Outside Edge of Runways | 72.5” (1,842 mm) |
| M – Runway Width | 18.75” (476 mm) |
| N – Length of Runways | 189.75” (4,820 mm) |
| Min. Wheelbase @ Rated Capacity | 135” (3,429 mm) |
| Min. Wheelbase @ 75% Capacity | 115” (2,921 mm) |
| Min. Wheelbase @ 50% Capacity | 95” (2,413 mm) |
| Min. Wheelbase @ 25% Capacity | 80” (2,032 mm) |
| Locking Positions | 16 (spaced every 4” / 102 mm) |
| Time to Full Rise | 60 seconds |
| Motor | 110VAC, 50-60HZ, 1PH, 20A or 208-230VAC, 50-60HZ, 1PH, 25A |
