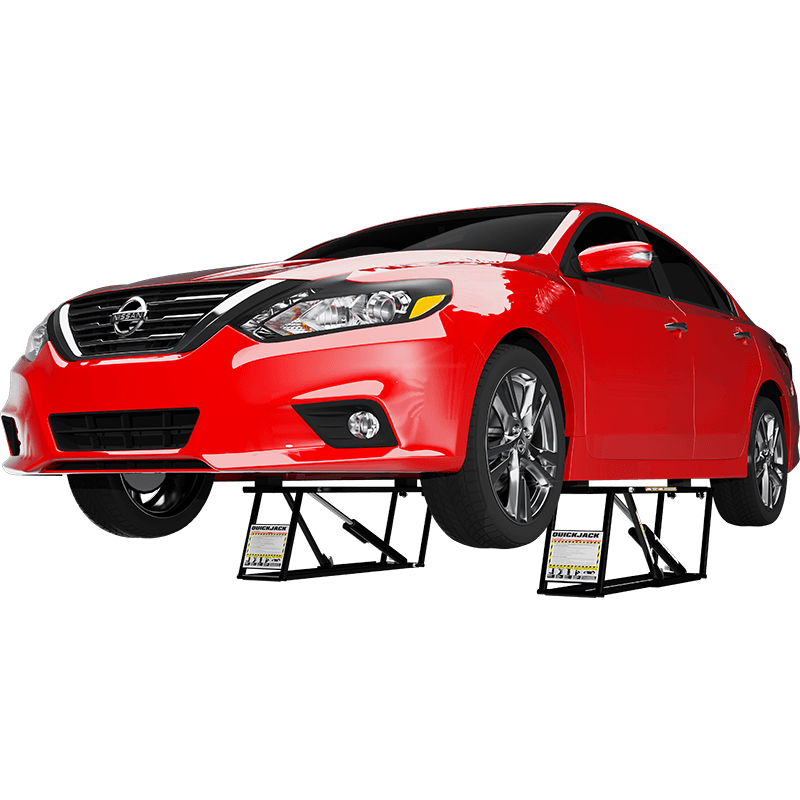

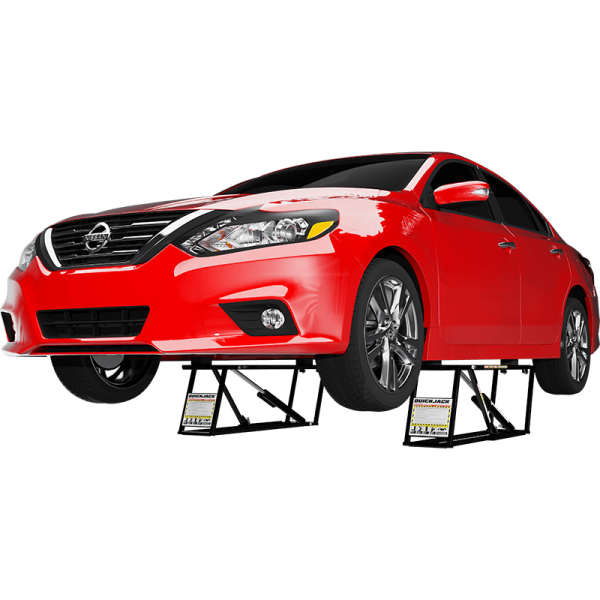

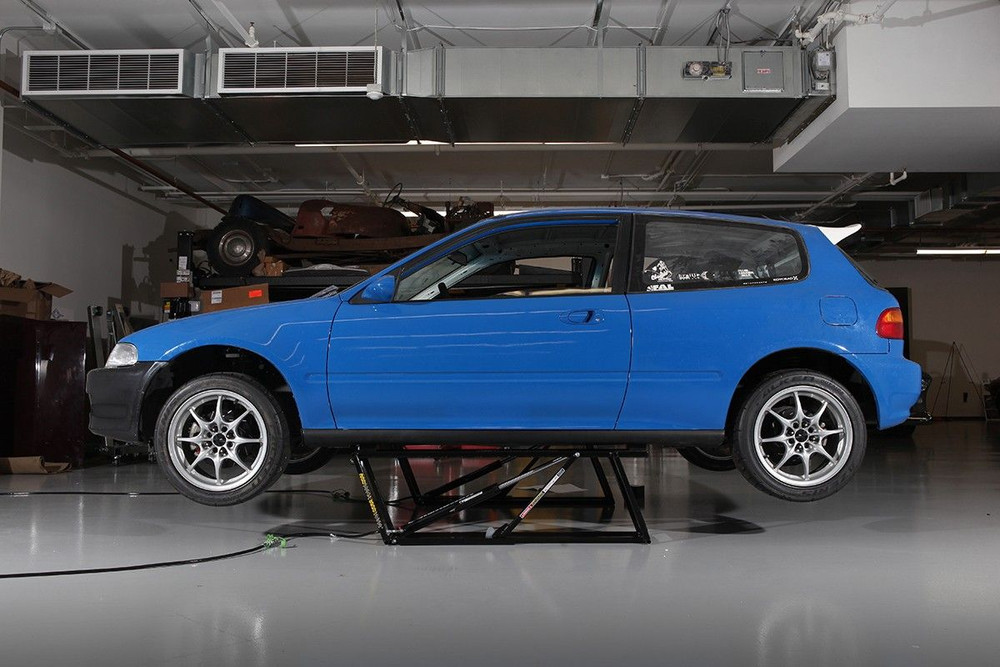

QuickJack’s BL-3500SLX is a great choice for small-wheelbase vehicles. It can handle up to 3,500 lbs. and is the lightest model QuickJack offers. Its frames are easy to transport in and out of the garage or wherever else you want to get work done. With the BL-3500SLX you’ll be able to have fun wrenching at home and shave off precious seconds while you’re at the track. Great for Miatas!This is one of the smartest home car lifts ever made. QuickJack’s BL-3500SLX portable car lift system is a game-changer. With it you won’t have to deal with unsafe ramps ever again, as well as flimsy jacks and untrustworthy stands. The BL-3500SLX will be able to get your vehicle about 21” in the air in less than 30 seconds.

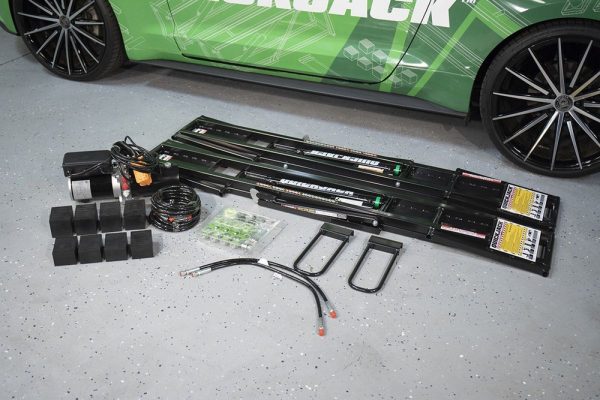

This portable lift has a weight capacity of 3,500 lbs., and it is the smallest and lightest frame assembly in QuickJack’s lineup. Its most impressive feature however is the fact that it can go virtually anywhere. This QuickJack is so lightweight that you can fit it in an average car trunk or backseat. After the initial one-time assembly, all you have to do is hook up the power. Once the frames and rubber blocks are in place under your vehicle’s lift points, you can have your QuickJack up and running in no time. It can’t be easier.

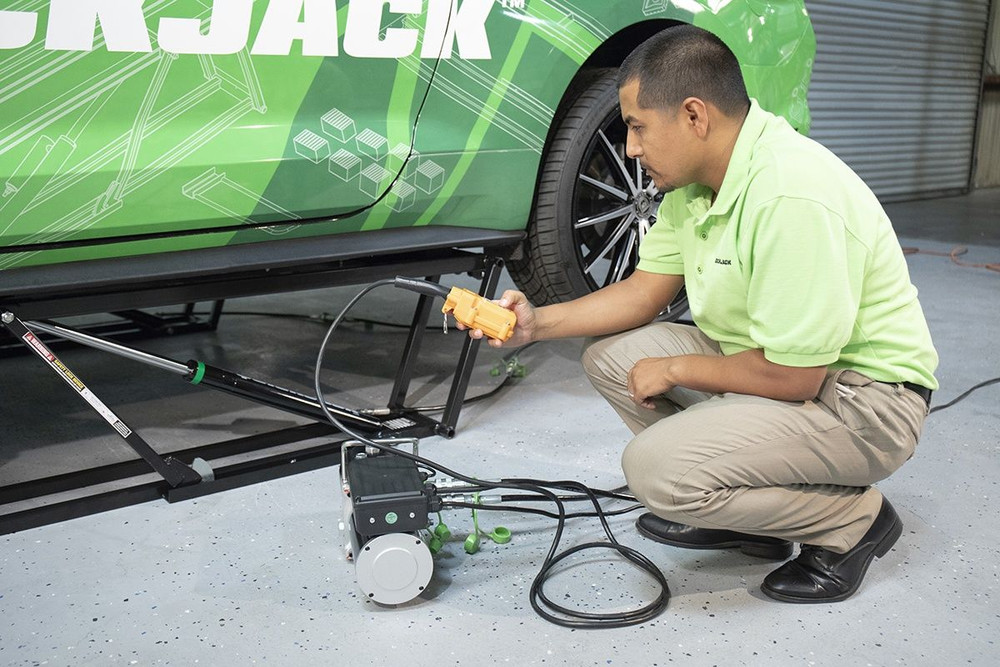

This QuickJack sports a super-low 3” profile which lets it fit where no other car lift could. Since there aren’t any cross members involved, you can easily tailor the platform spacing to fit nearly any vehicle weighing 3,500 lbs. and under. The lightweight nature makes this portable car lift the perfect tool for the track. There are many satisfied racers and enthusiasts who have enjoyed QuickJack for quick wheel service or tune-ups away from home. There is also an optional DC power unit which connects the car lift to your car battery or portable battery pack. With the QuickJack BL-3500SLX you can easily convert your garage lift to a portable car lift just by rolling it to the trunk of your car and hauling it to the track. Its 12V DC power option makes this the world’s first-ever true track lift. You won’t need to have a professional pit crew when you have a QuickJack at your side.
Features

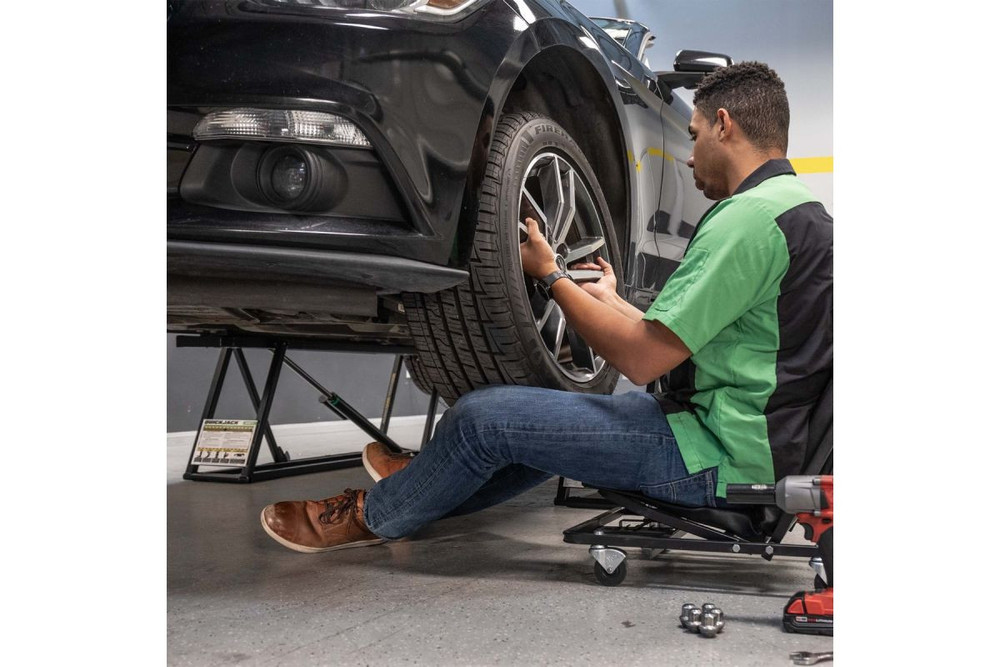

Perfect for the track
Convert your garage lift to a portable car lift just by rolling it to the trunk of your car and hauling it to the track. 12V DC power option makes this the world’s first-ever true track lift. If you don’t have a professional pit crew at your disposal, you’ll want QuickJack by your side.
Have a heavier vehicle? The BL-5000SLX is also great for track day.
Extended block trays

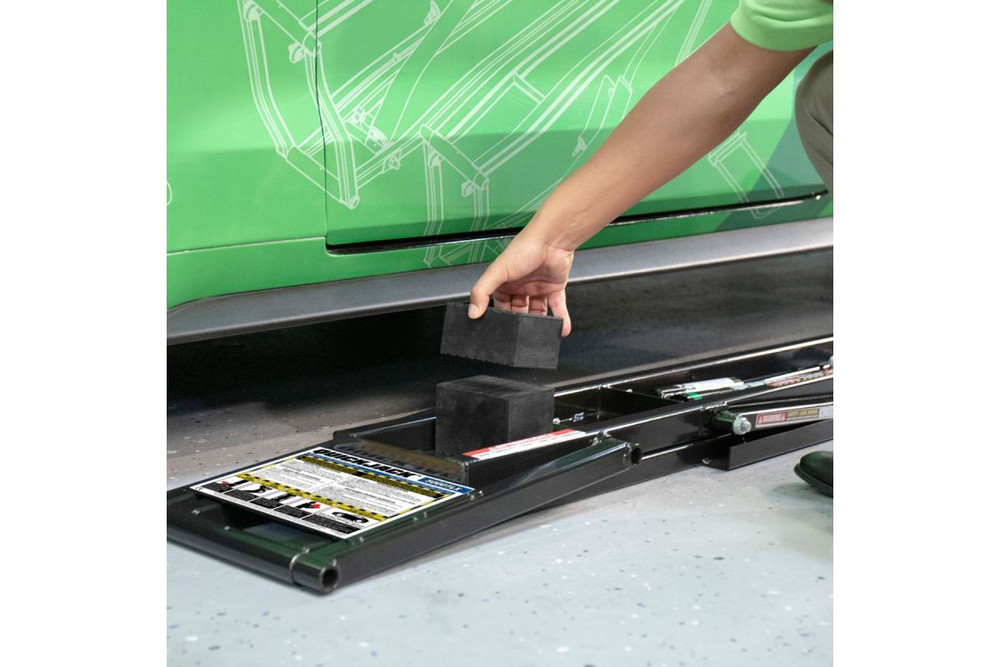

QuickJack has increased the size of their rubber block trays to improve access to varied lift points. Position blocks from 26.75” – 50.5” apart, satisfying most lift point spreads.

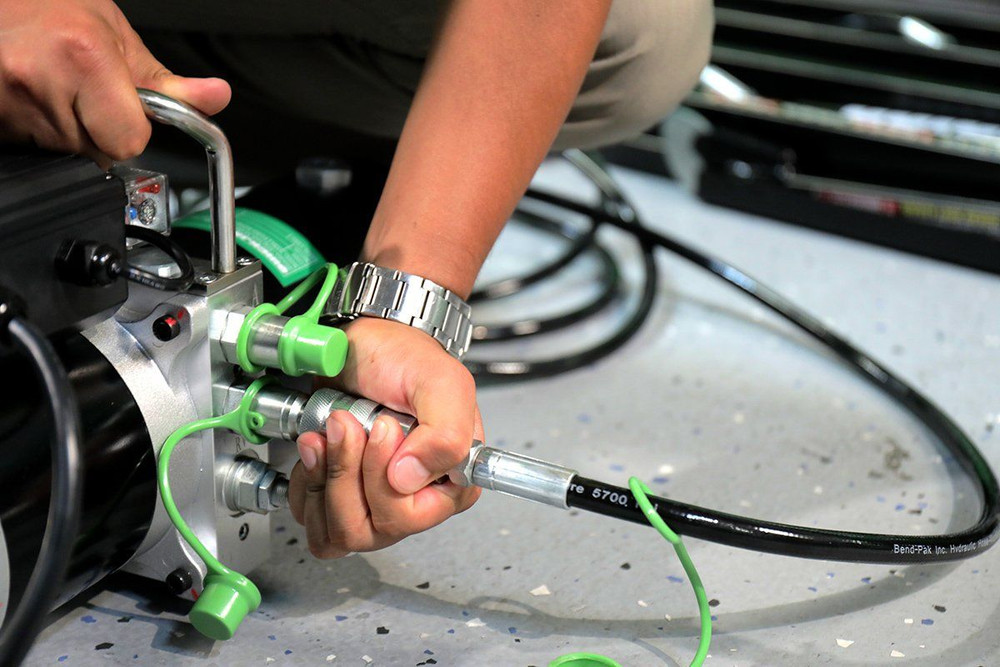

Zero-leak fittings

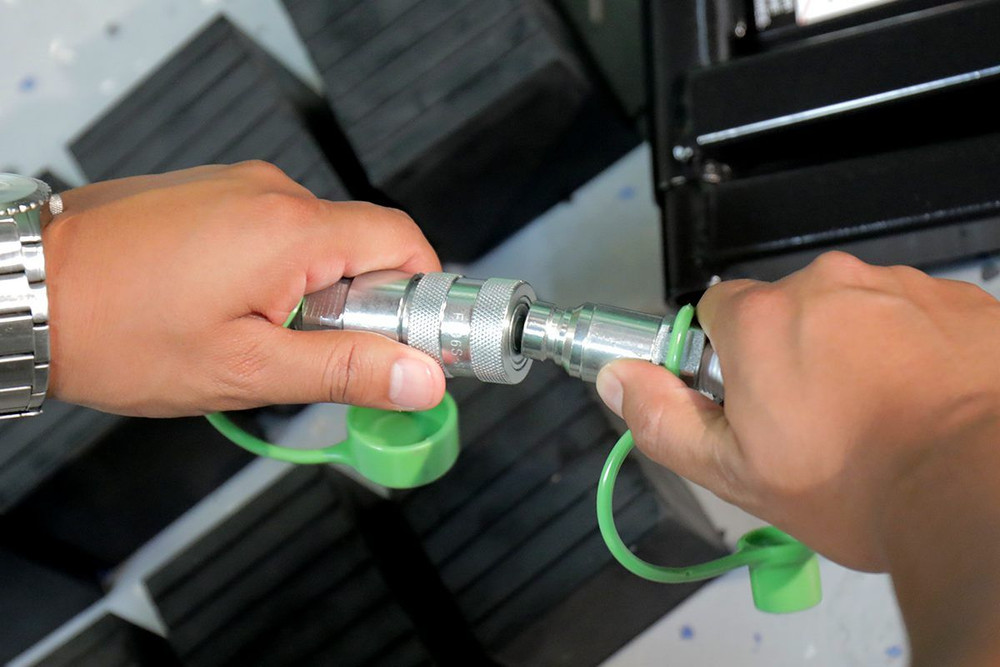

QuickJack’s car lift components include flush-face hose fittings to make sure the fluids stay in the unit and not on your garage floor. You don’t want to be the guy who starts leaking all over the track, either.

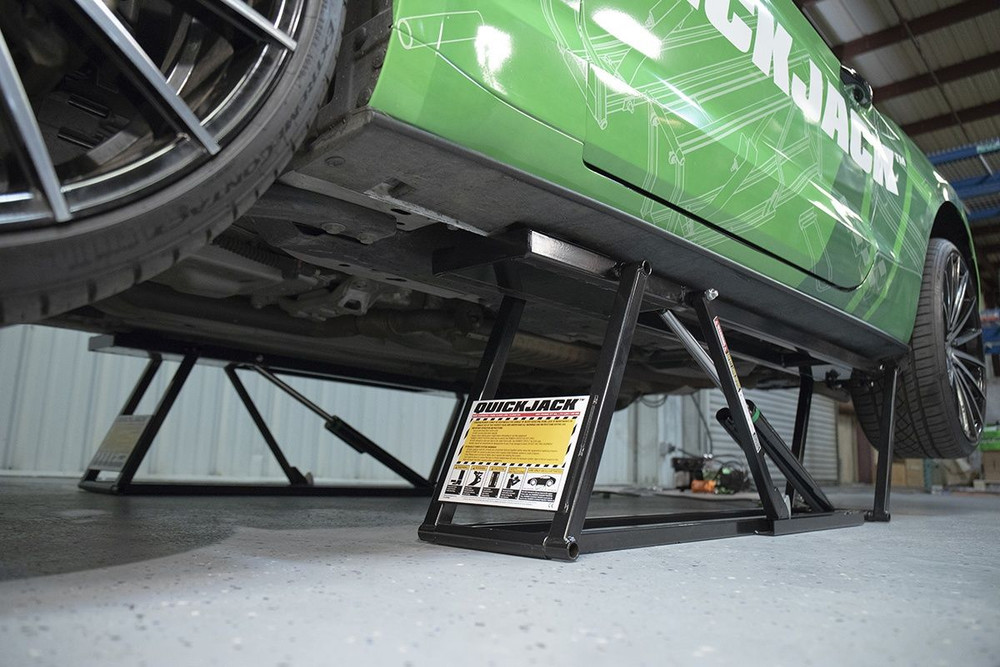

Open-center design

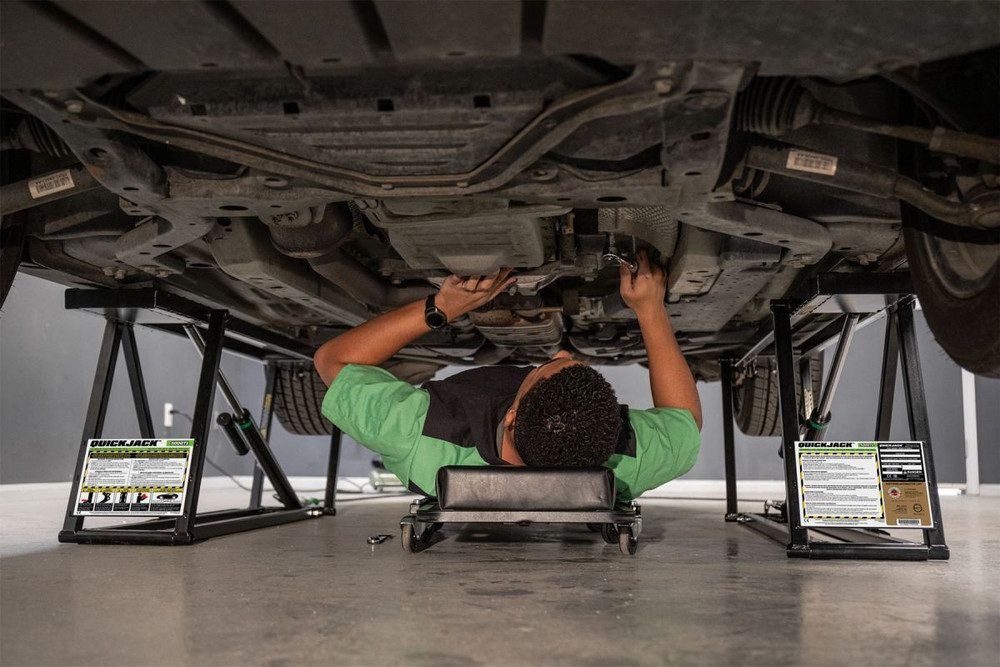

Inspired by larger frame-engaging car lifts, QuickJack’s open-center design gives users total access to the wheels and undercarriage.
Specs
Lifting Capacity
| Capacity | 3,500 lbs. (1,588 kg) |
|---|
Lowered Height
| A – Frame only: | 3″ (76 mm) |
|---|---|
| B – With 2″ block: | 3.5″ (89 mm) |
Lifting Height
| C – Frame only: | 16.5″ (419 mm) |
|---|---|
| D – With 2″ block: | 17.5″ (445 mm) |
| E – With 3″ block: | 18.5″ (470 mm) |
| F – Max. height: | 21″ (533 mm) |
| G – With adapters: | Not compatible |
| H – With adapters + pin: | Not compatible |
Lift Point Spread
| I – Maximum: | 50.5″ (1,283 mm) |
|---|---|
| J – Minimum: | 27″ (686 mm) |
Frame dimensions (ea.)
| K – Width: | 10.5″ (267 mm) |
|---|---|
| L – Length: | 62.5″ (1,588 mm) |
| A – Height: | 3″ (76 mm) |
| Weight: | 60 lbs. (27 kg) |
Other Spec
| Time to full rise: | 30 seconds |
|---|---|
| Power unit weight: | 30 lbs. (13 kg) |
| Shipping weight (per frame): | 64 lbs. (29 kg) |
