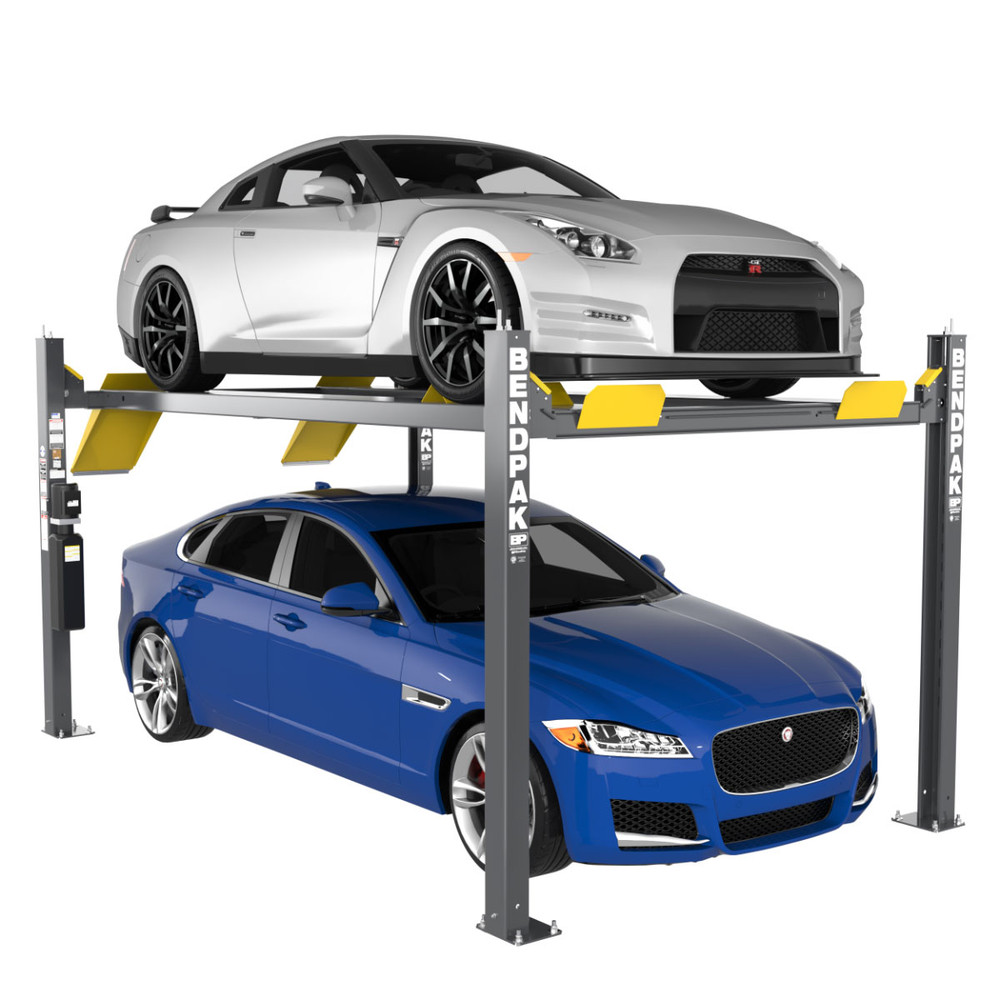

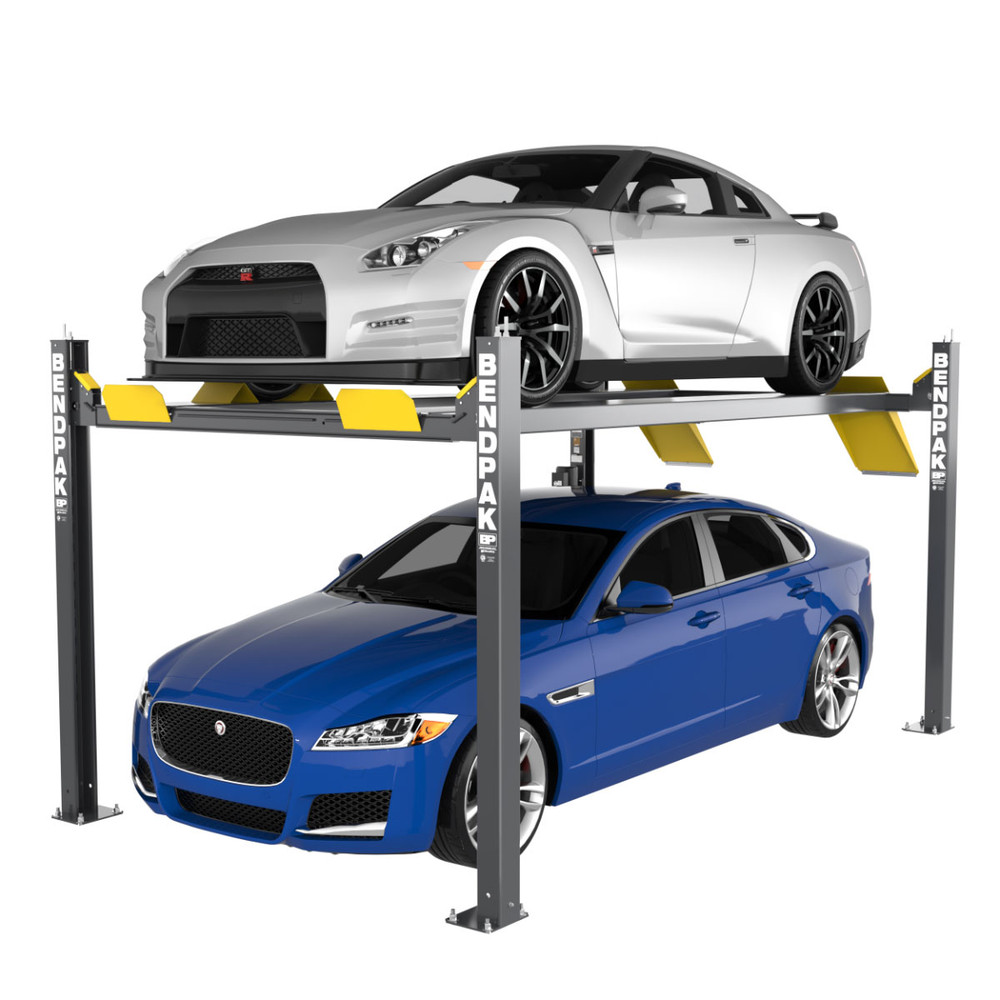

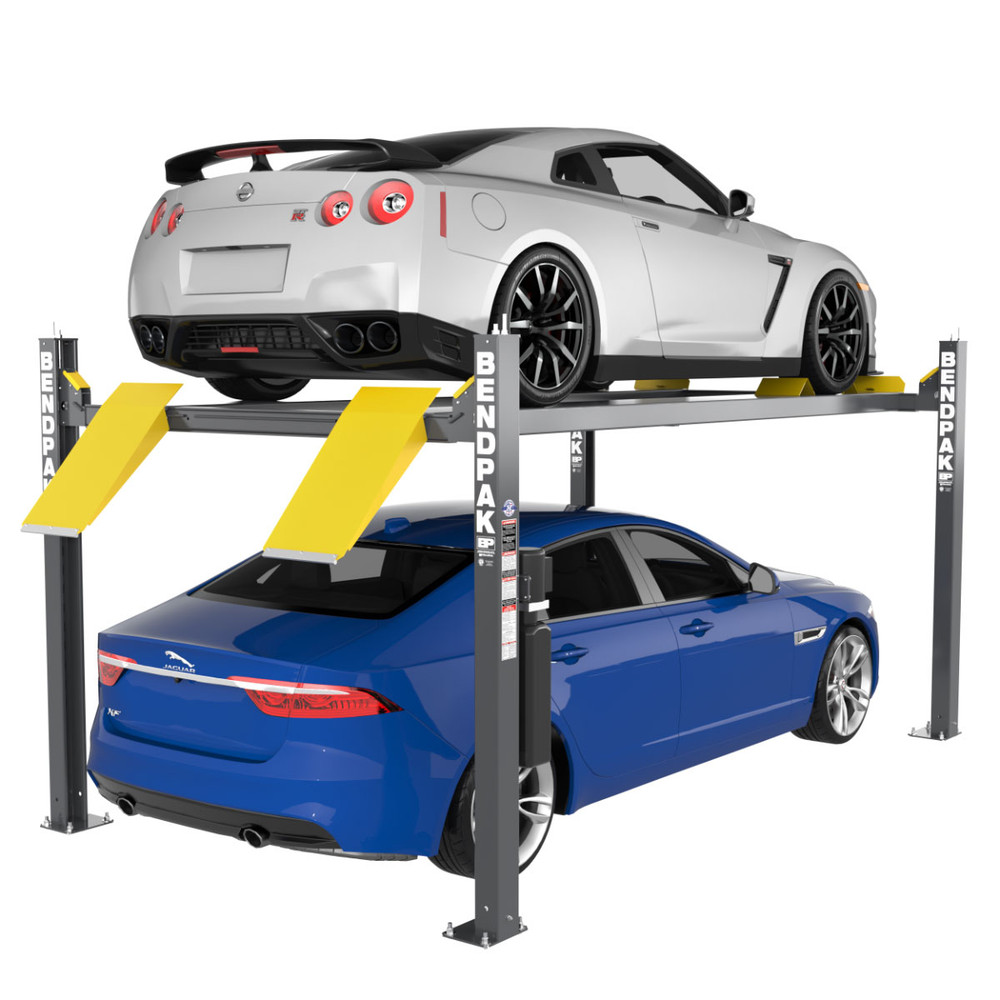

BendpakHD-9EWT 9,000-lb. Capacity ALI Certified / Four-Post Lift / Extra-Wide / High Lift
BendpakHD-9EWT 9,000-lb. Capacity ALI Certified / Four-Post Lift / Extra-Wide / High Lift - Image 2
BendpakHD-9EWT 9,000-lb. Capacity ALI Certified / Four-Post Lift / Extra-Wide / High Lift - Image 3
BendpakHD-9EWT 9,000-lb. Capacity ALI Certified / Four-Post Lift / Extra-Wide / High Lift - Image 4
BendpakHD-9EWT 9,000-lb. Capacity ALI Certified / Four-Post Lift / Extra-Wide / High Lift - Image 5
BendpakHD-9EWT 9,000-lb. Capacity ALI Certified / Four-Post Lift / Extra-Wide / High Lift - Image 6
,

BendpakHD-9EWT 9,000-lb. Capacity ALI Certified / Four-Post Lift / Extra-Wide / High Lift

$6,695.00

+ Free Shipping

Built for garages with plenty of space, the BendPak HD-9EWT is perfect for high ceilings and high-rise vehicles. Unlike the narrower HD-9ST four-post lift, the HD-9EWT comfortably accommodates wide-body trucks and SUVs, avoiding concerns about mirror and door scratches. With a substantial 82” rise from the runways, it lifts heavy vehicles higher, providing plenty of room for taller techs to work beneath. Plus, it offers ample space for high-clearance trucks and SUVs, ensuring compatibility with taller vehicles.

Dual-hub cable sheaves are more expensive to manufacture, but they prevent axles, sheaves, and cables from burning out prematurely. The HD-9EWT’s multi-level locking positions ensure that technicians can lock the lift at varied heights, eliminating the need to crouch or reach uncomfortably while performing maintenance. The electric-hydraulic power system allows you to stop, start, and reverse your four-post lift on a dime, with controls within easy reach.

Each four-post lift comes with four lifting cables made from superior-grade stainless steel, rated to handle 14,400 lbs. each. These cables are hidden within the post columns for safety and a streamlined look. The integrated design routes all lifting cables, airlines, safety latches, and sheaves internally, adding to the lift’s sleek appearance.

Safety is a top priority with each and every BendPak lift. Four locks engage simultaneously as the lift is raised, and a backup locking system catches cable slack in the unlikely event of cable failure. Longer approach ramps and low runways make lifting sports cars and other low-standing vehicles easier than ever.

The HD-9EWT is a solid choice for both DIY enthusiasts as well as professional shop owners. The added ceiling clearance is particularly valued in shops, providing ample space for lower-ceiling vehicles. For anyone looking to solve their vehicle storage problems while maximizing their space, the HD-9EWT is the perfect solution.

Specifications

  • 9,000-lb. maximum lifting capacity
  • Freestanding design
  • High-rise
  • Better suited for wide cars and off-road vehicles
  • Perfect for parking, storage, and service
  • Runways accommodate narrow and standard vehicles
  • Runways include rail-kit for optional accessories
  • Electric-hydraulic power system
  • Single hydraulic cylinder mounted underneath runway

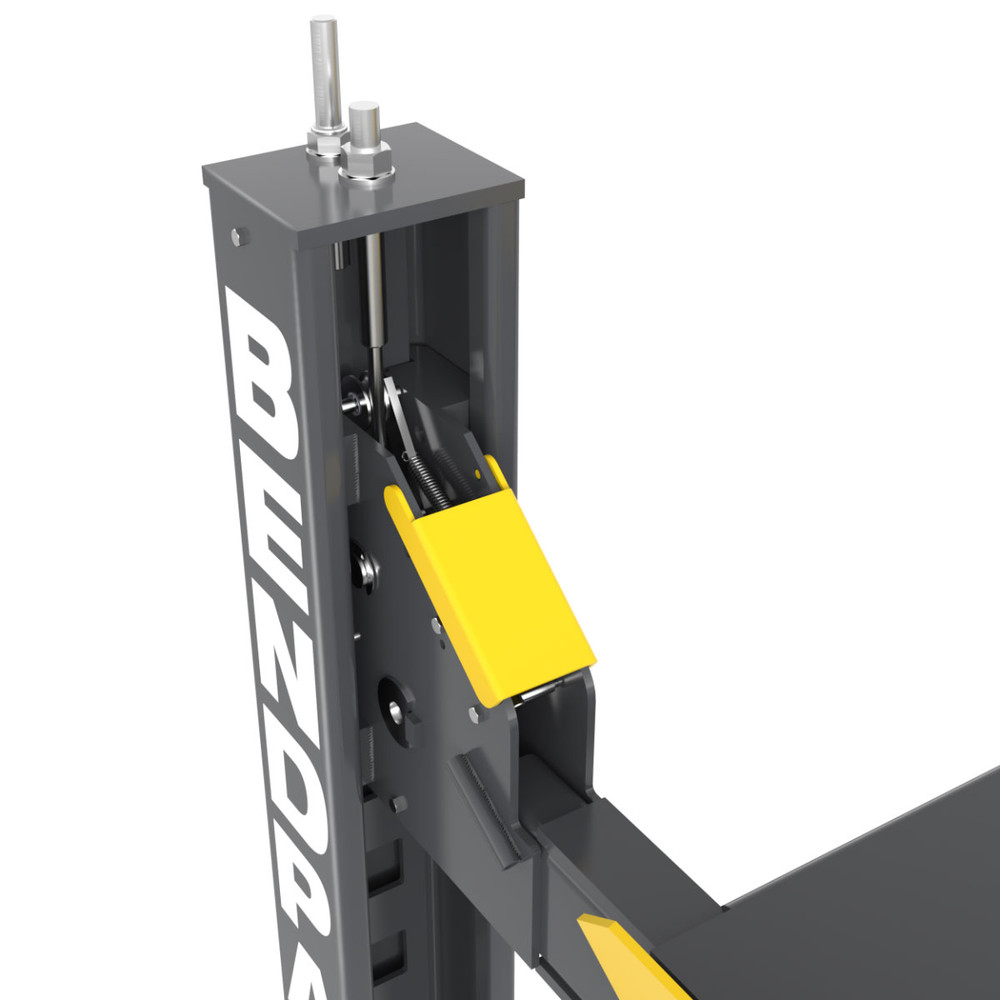

  • Fully enclosed lifting cables, safety locks, and sheaves
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers
  • Multi-position safety locks in each column
  • Adjustable safety locks in each column
  • Adjustable lock ladders
  • Runways feature a durable matte finish
  • Push-button pneumatic safety release
  • Independent backup slack-cable safety latches
  • Customizable power unit location

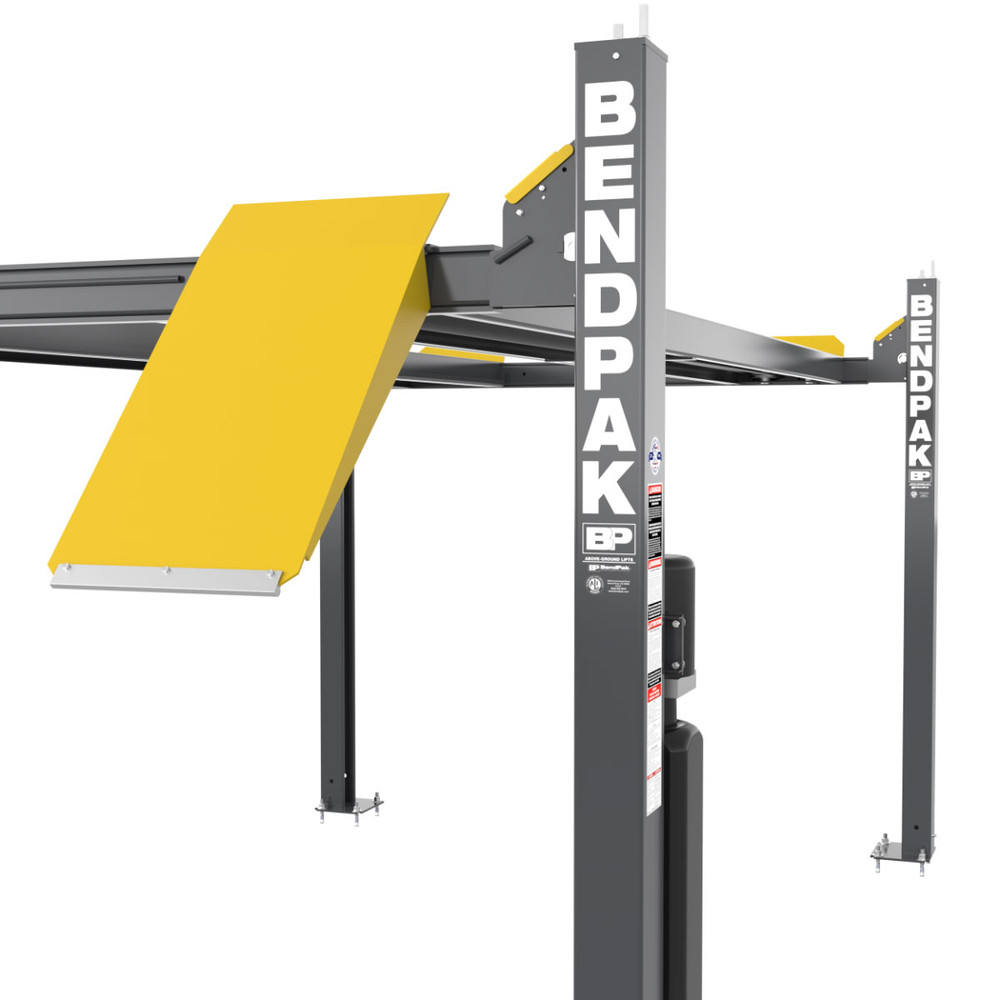

  • Removable approach ramps for additional drive-under clearance
  • Longer approach ramps for low-ground clearance vehicles available
Lifting Capacity: 9,000 lbs. / 4,082 kg
Lifting Capacity: 9,000 lbs. / 4,082 kg
Max Capacity at Front Axle: 4,500 lbs. / 2,041 kg
Max Capacity at Front Axle: 4,500 lbs. / 2,041 kg
Max Capacity at Rear Axle: 4,500 lbs. / 2,041 kg
Max Capacity at Rear Axle: 4,500 lbs. / 2,041 kg
A.        Min. Runway Height: 4.75 in. / 121 mm
A.        Min. Runway Height: 4.75 in. / 121 mm
B.        Maximum Rise: 82.165 in. / 2,087 mm
B.        Maximum Rise: 82.165 in. / 2,087 mm
C.       Maximum Lifting Height: 87 in. / 2,208 mm
C.       Maximum Lifting Height: 87 in. / 2,208 mm
D.       Overall Width ± .125 in. / 3 mm: 117 in. / 2,970 mm
D.       Overall Width ± .125 in. / 3 mm: 117 in. / 2,970 mm
E.         Outside Length: 198 in. / 5,028 mm
E.         Outside Length: 198 in. / 5,028 mm
F.         Overall Length: 224.50 in. / 5,703 mm
F.         Overall Length: 224.50 in. / 5,703 mm
G.       Height of Post: 100 in. / 2,537 mm
G.       Height of Post: 100 in. / 2,537 mm
H.       Distance Between Posts: 107 in. / 2,716mm
H.       Distance Between Posts: 107 in. / 2,716mm
I.            Drive-thru Clearance: 93.25 in. / 2,371 mm
I.            Drive-thru Clearance: 93.25 in. / 2,371 mm
J.           Runway Width: 19 in. / 482 mm
J.           Runway Width: 19 in. / 482 mm
K.         Runway Length: 182.25 in. / 4,629 mm
K.         Runway Length: 182.25 in. / 4,629 mm
L.         Width Between Runways: 35.75 in. – 42.0 in. / 910 MIN – 1,068 mm MAX
L.         Width Between Runways: 35.75 in. – 42.0 in. / 910 MIN – 1,068 mm MAX
M.      Runway Centerline: 57.75 in. – 64.00 in. / 1,468 – 1,626 mm
M.      Runway Centerline: 57.75 in. – 64.00 in. / 1,468 – 1,626 mm
N.       Outside Edge of Runways: 76.75 in.- 83 in.
N.       Outside Edge of Runways: 76.75 in.- 83 in. / 1,950 – 2,108 mm
Max. Load Operating Pressure: 135 in. / 3,429 mm
Max. Load Operating Pressure: 135 in. / 3,429 mm
Min. Wheelbase @ Rated Capacity: 115 in. / 2,921 mm:
Min. Wheelbase @ Rated Capacity: 115 in. / 2,921 mm:
Min. Wheelbase @ 75 Capacity: 95 in. / 2,413 mm
Min. Wheelbase @ 75 Capacity: 95 in. / 2,413 mm
Min. Wheelbase @ 25 Capacity: 80 in. / 2,032 mm
Min. Wheelbase @ 25 Capacity: 80 in. / 2,032 mm
Locking Positions: 17 spaced every 4 in. / 102 mm
Locking Positions: 17 spaced every 4 in. / 102 mm
Motor: 220 VAC, 60 Hz, 1 Ph (special voltages available upon request)
Motor: 220 VAC, 60 Hz, 1 Ph (special voltages available upon request)
