Autostacker A6W

$13,795.00

+ Free Shipping

The Autostacker A6W is an extra-wide version of the high-quality collapsible parking lift. Similar to the standard-width model, the extra-wide edition offers a safe and easy way to store two vehicles in a single parking space. With this model, you’ll receive 8 more inches of interior space, making it much easier to open vehicle doors and make a clean exit.

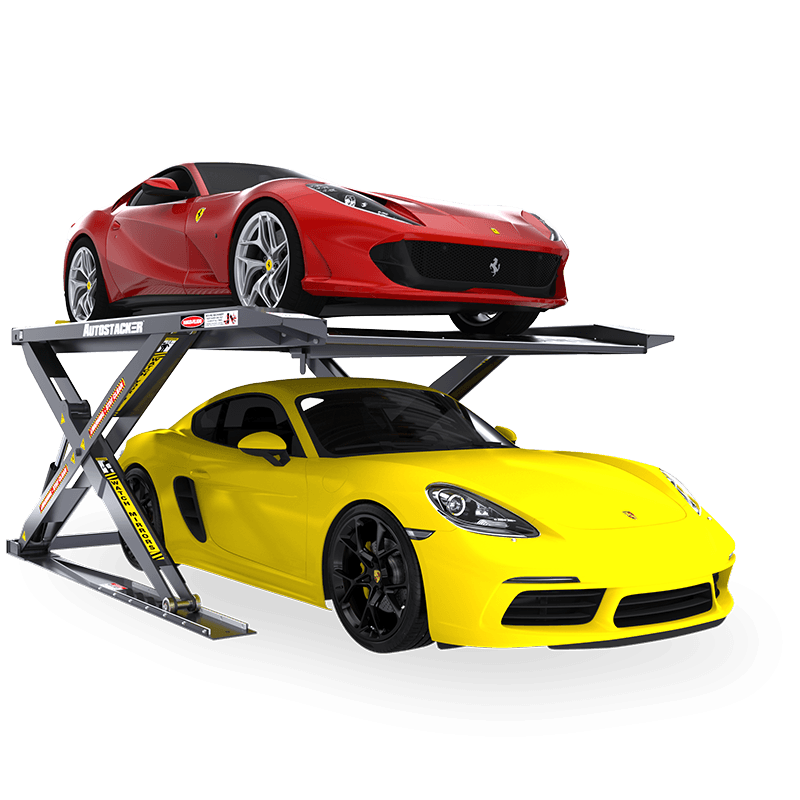

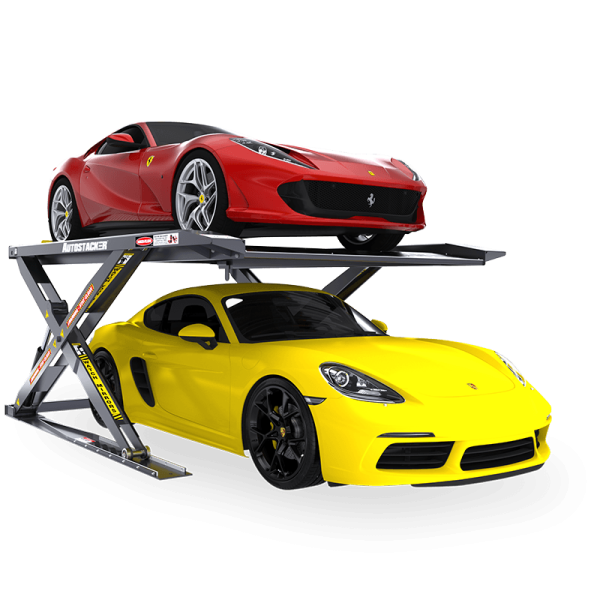

Autostacker A6W Extra-Wide Parking Lift

Autostacker is compact, which allows it to fit into tighter spaces with ease. However, there is a downside with this; there are precious few inches to open a vehicle door when a car is pulled front-first into the lower space. The A6W fixes this by offering 8 additional inches for door clearance.

The A6W also offers a more spacious environment for vehicle loading on the top-level platform. Lower-level vehicles will pull into an equally roomy parking space that is protected by Autostacker’s scissor superstructures. Despite being the extra-wide version of Autostacker, the A6W still remains a solid choice for a car lift that can perform in tight spaces and garages. It will also allow homeowners to maintain a clean, modern, and sophisticated look to their garages.

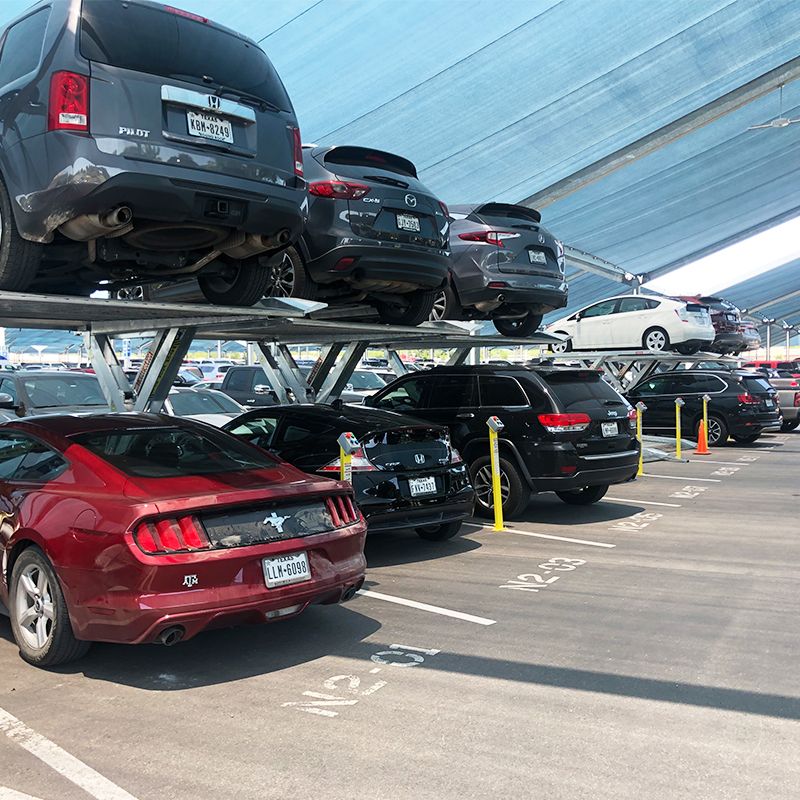

Commercial Application of a Wider Lift

Commercial parking lots and valets need to be ready for anything: commuter sedans, trucks, SUVs, classics, exotics, and everything else. Normally what businesses will do when space is limited is they’ll string together a bunch of parking lifts that can accommodate anything that comes their way. By utilizing a wider style of lifts, you’ll be able to benefit other vehicles whether they’re raised on the platform or parked in the lower level.

While the upper level will provide more room for wide vehicles, the lower level has arguably the best benefit of all: additional door clearance. With the A6W, you’ll find it much easier to get in and out of a lower-level parked vehicle. Autostacker comes equipped with built-in rubber door protectors, but nothing beats having a wider area to work with when exiting a vehicle.

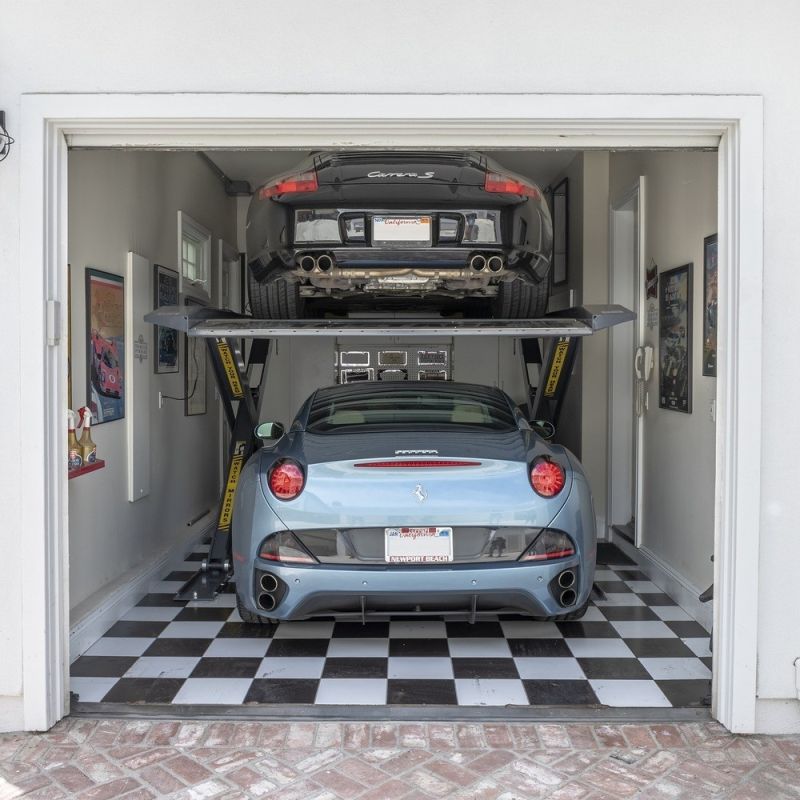

Residential Application of a Wider Lift

The difficult thing about purchasing a home lift is that it needs to meet many requirements to even be worth the investment. It needs to be compact, safe to use, efficient, and must be protective of the vehicles. Most car collectors aren’t mechanics, so they shouldn’t be expected to be doing constant maintenance on their lift. Of course, lift owners also need to be able to comfortably enter and exit their vehicle.

Low Maintenance

Autostacker has been built with uncompromisingly high-quality materials and rigorous engineering standards, and it could not be simpler to use. As mentioned before, the A6W option is wider than the original Autostacker, so the full-length, galvanized and drip-proof loading platform will always be more accommodating for wide-body vehicles. This lift features zero cables to replace or maintain, so the simplicity of the lift design means you’ll have more time with zero scheduled maintenance.

Extra-Wide Autostacker Still Saves Space

There are few things more disappointing than measuring your vehicles only to find out that they’re just a bit too wide to fit on your Autostacker. It’s equally frustrating when exiting wider vehicles and finding it’s a difficult squeeze to get out. You can’t sacrifice basic functionality just to save on space.

The A6W intelligently balances the need to save space with the need to fit wider vehicles. With the standard-size Autostacker being about the average size of a parking space, the extra-wide model is just a bit bigger, but it still makes a world of difference. This parking lift will still fit in most home and commercial environments, and will still offer BendPak’s patented, completely collapsible design that will deliver you maximum versatility, safety, and ease-of-use.

Features

  • 6,000-lb. lifting capacity
  • Extra-wide construction for increased door clearance
  • Key-switch disconnect fully disables operation for enhanced security
  • Audible alarm and warning buzzer alerts operator and bystanders when the lift is in operation.
  • Accommodates cars, light trucks and SUVs
  • Rugged, welded-steel construction is strong and durable
  • 100% hot-dipped, galvanized steel platform
  • Attractive slate gray, baked-on powder coat finish provides added toughness
  • Front wheel dish acts as a wheel chock to prevent vehicles from rolling forward or backward
  • Extra-wide, gradual sloping platform reduces entry ramp height
  • Automatic safety locks engage at five different parking heights
  • Simple push-button controls
  • Dual, direct-drive hydraulic lifting cylinders
  • Dependable hydraulic circuit that provides precise, equalized lifting
  • Variable height parking accommodates a wide range of vehicle and ceiling heights
  • Contoured scissor legs provide rigidity, decreased deflection and a low collapsed height
  • Full-width, straight-through axles increase overall stability and tracking through the vertical travel range
  • Full-width pivot pins promote straighter tracking of the scissor legs throughout travel—vital for eccentric loads
  • Extra-wide, heavy-duty steel scissor arms with cross member bracing enhance stability
  • Unique clevis-design scissor ends lower stress and increase rigidity by distributing loads symmetrically over the pins
  • Patented asymmetric scissor arms provide greater underside door clearance
  • Patented Door-sentry™ car door protectors are made from energy-absorbing rubber to protect against accidental scratches or door dings
  • Space-saving design is perfect for commercial or residential applications
  • Minimal footprint fits a typical parking space
  • Hydraulic safety valves (velocity fuses) prevent sudden, unexpected platform collapse in the unlikely event of hydraulic system failure
  • UL Listed electrical components meet National Electrical Code (NEC) requirements

Specs

Lifting Capacity

Capacity 6,000 lbs. (2,722 kg)

Dimensions

Overall width: 111” (2,815 mm)
Overall length: 143” (3,630 mm)
Platform length: 124” (3,150 mm)
Platform width: 91.75” (2,331mm)
Platform height (forward): 13” (330 mm)
Ramp height (entry): 2” (51 mm)
Maximum underclearance: 80” (2,032 mm)

Power

Motor horsepower: 2HP
Power consumption: 1,500 Watts
Motor voltage: 208-240V, 50/60Hz / 1Ph
Starting amps: 25A
Normal running amps: 12-18A

Dimensions

Motor horsepower: 7.5 HP
Power consumption: 5,600 Watts
Motor voltage: 208-230V/460 VAC, 50/60Hz / 3Ph
Starting amps 208-230V: 25A
Normal running amps 208-230V: 12-18A
Starting amps 460V: 10A
Normal running amps 460V: 6-9A
Decibels: 52 db

Dimensions

First (Lowest Locking Position): 52.5″ (1,331 mm)
Second: 60.75″ (1,543 mm)
Third: 68.5″ (1,736 mm)
Fourth: 75″ (1,909 mm)
Fifth (Highest Locking Position): 81.25″ (2,064 mm)

Dimensions

  • Right side scissors superstructure
  • Left side scissors superstructure
  • Front wheel trough
  • Ramp assembly with logo plate
  • Lower front tie-bar
  • Galvanized decking sections
  • Front tire stops
  • Power unit control console
  • Complete assembly parts package including all fasteners, hoses, fittings & anchor bolts
  • Installation and operators manual

Speed of Rise

Standard power unit console: 35 seconds
Optional multi-unit power unit console: 20 seconds

Shipping Weight

Weight 3,650 lbs. (1,656 kg.)
