Features and Benefits:

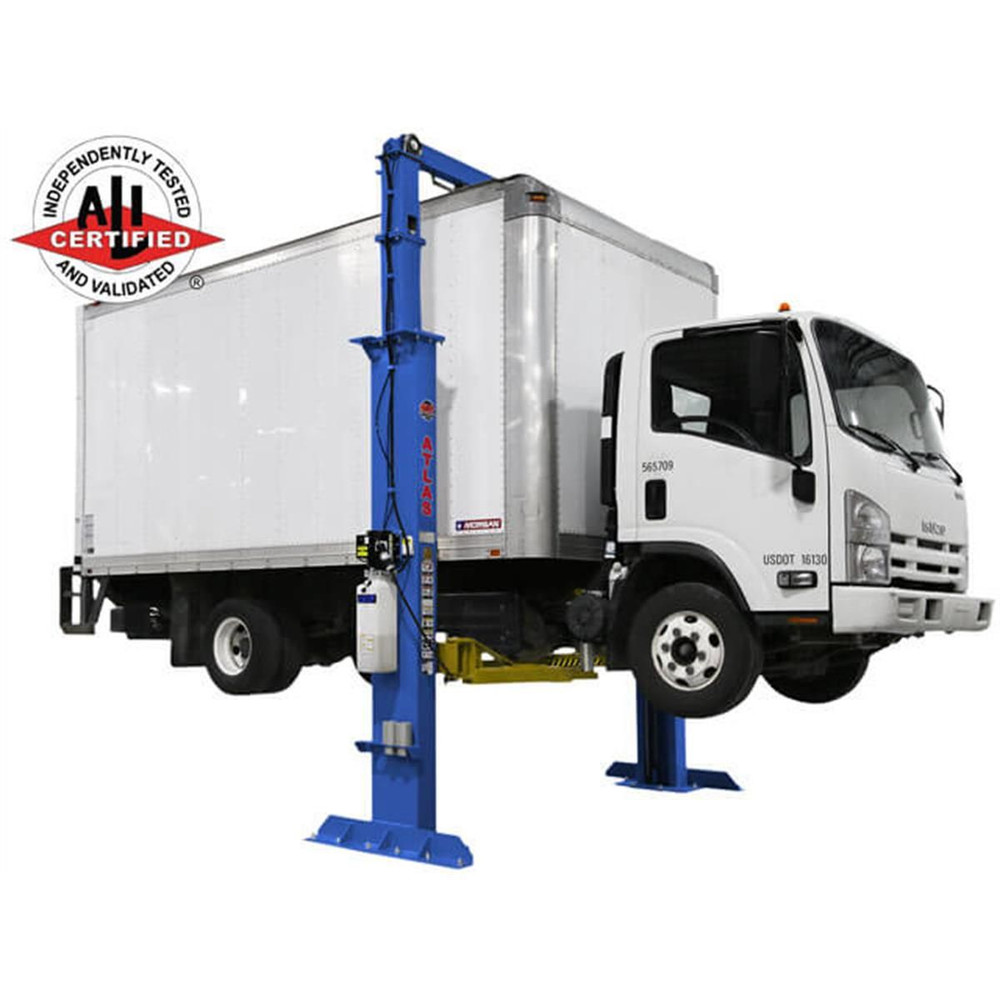

- ALI Certified Lift
- 15,000 lb. Capacity
- Heavy Duty, Commercial Grade

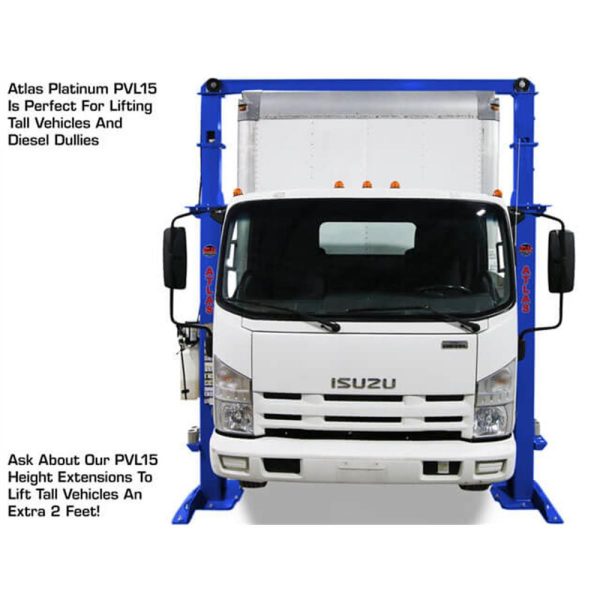

- Extra Tall & Extra Wide
- Overall Height 174 1/2″ (14′ 6 1/2″)
- Padded Carriages

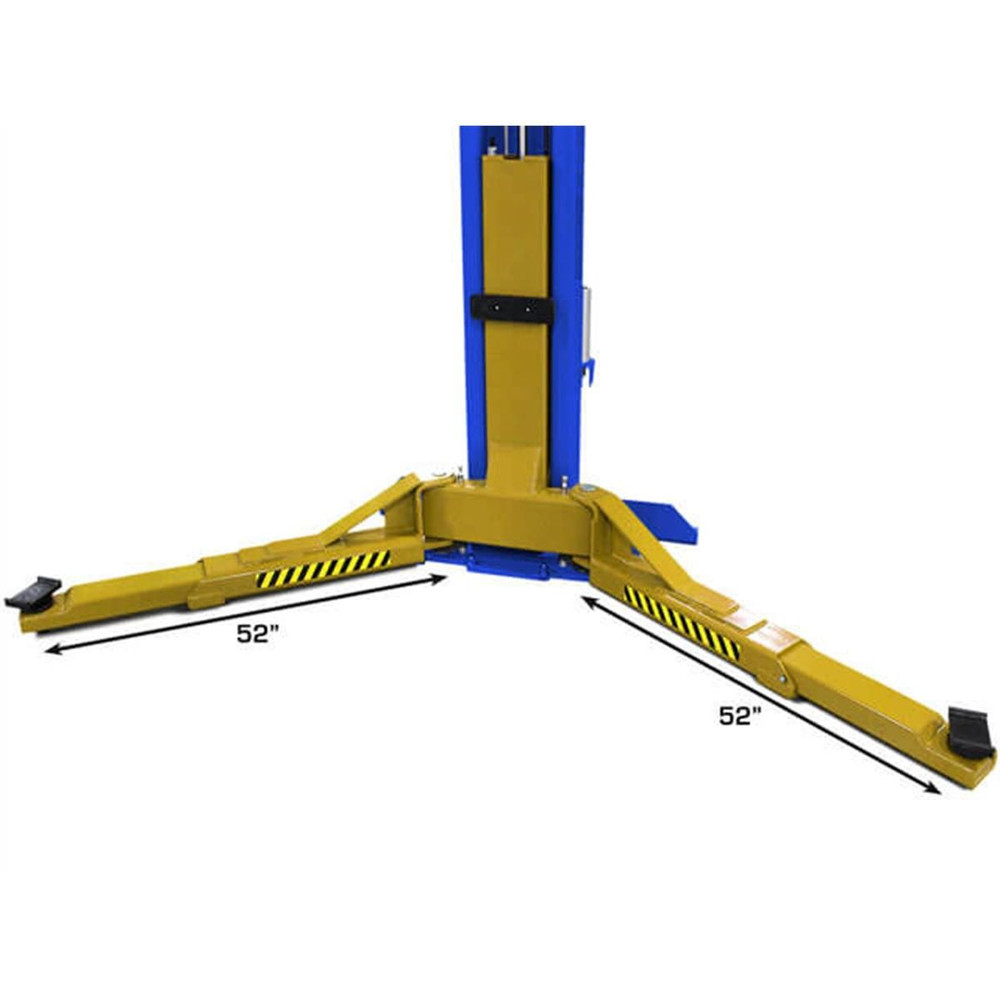

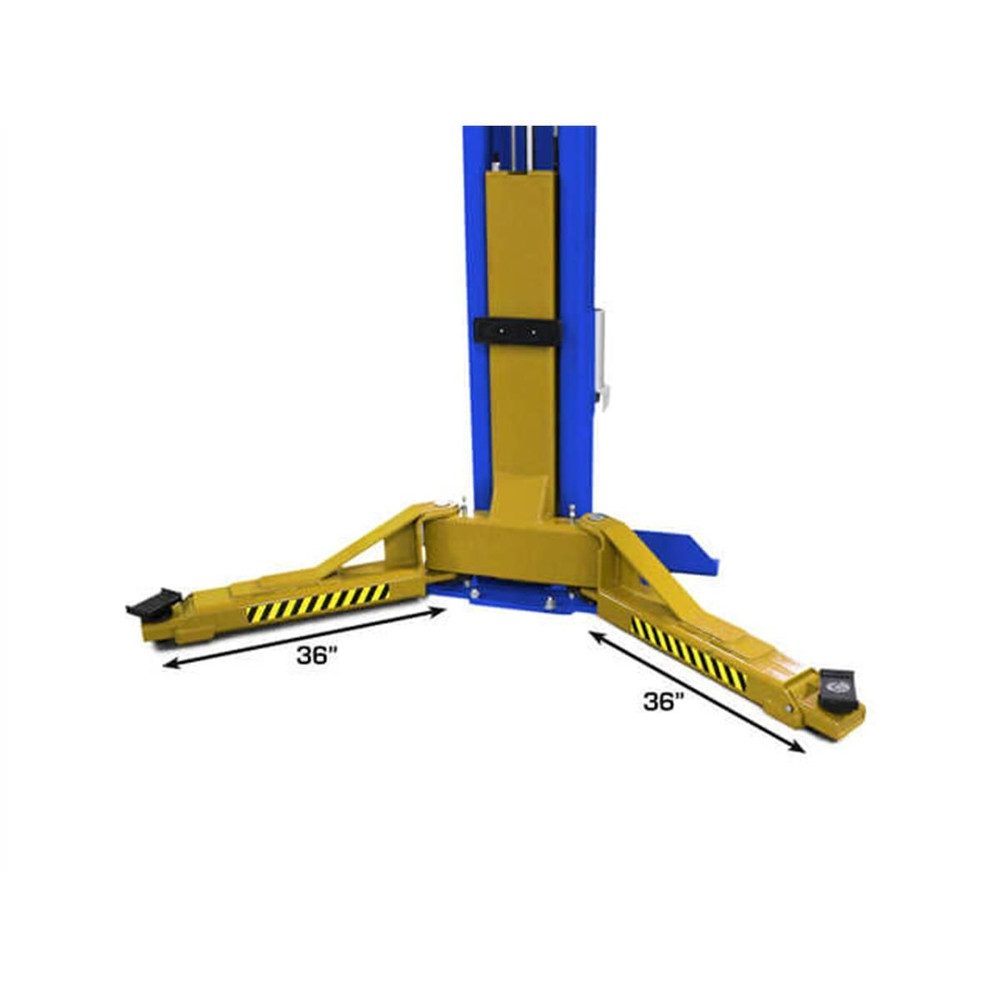

- Symmetric Arms
- Professional Grade Arm Lock Restraint System

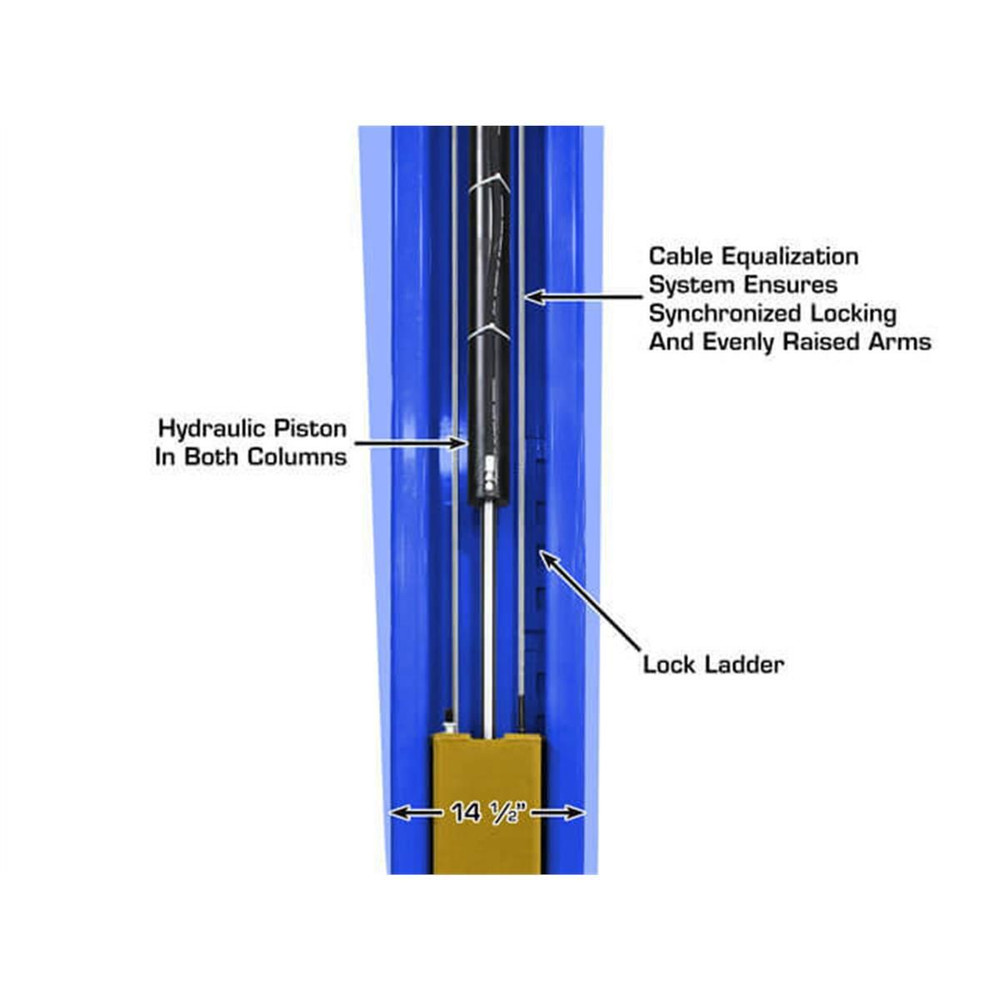

- Dual Direct-Drive Hydraulic Cylinders

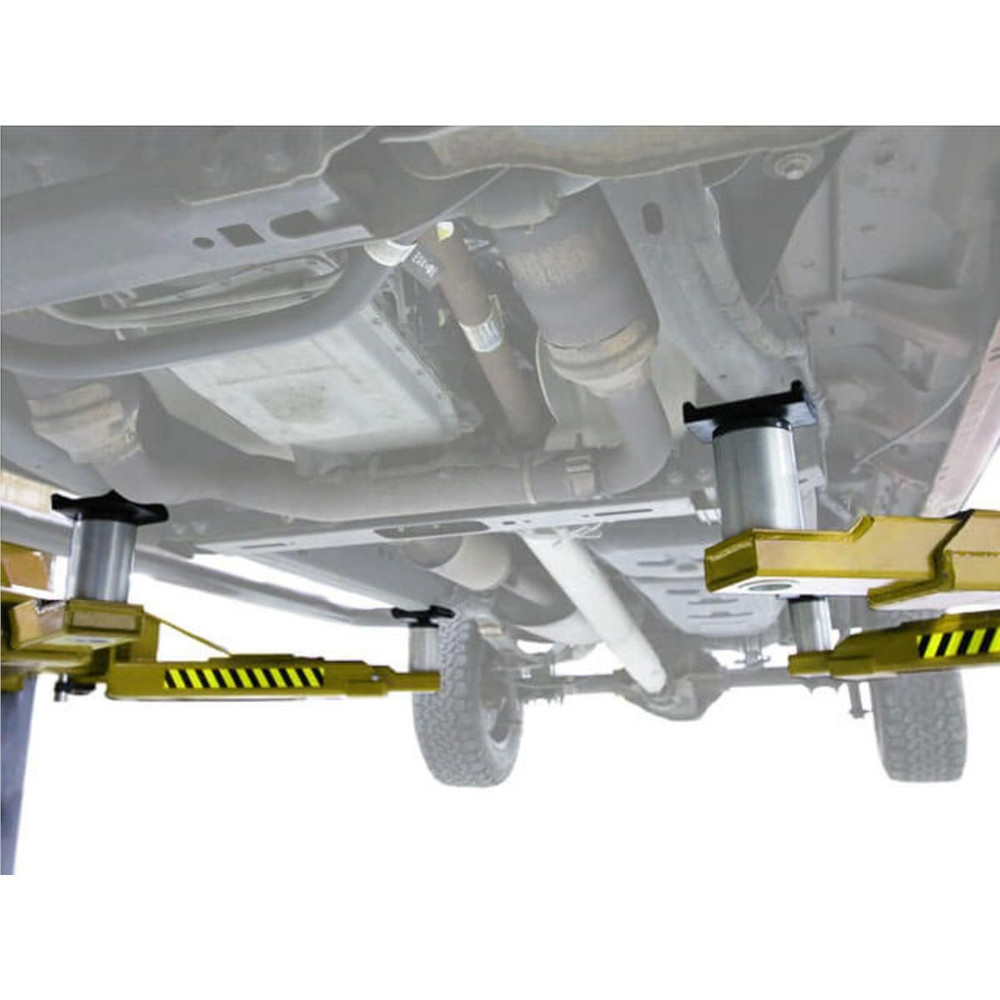

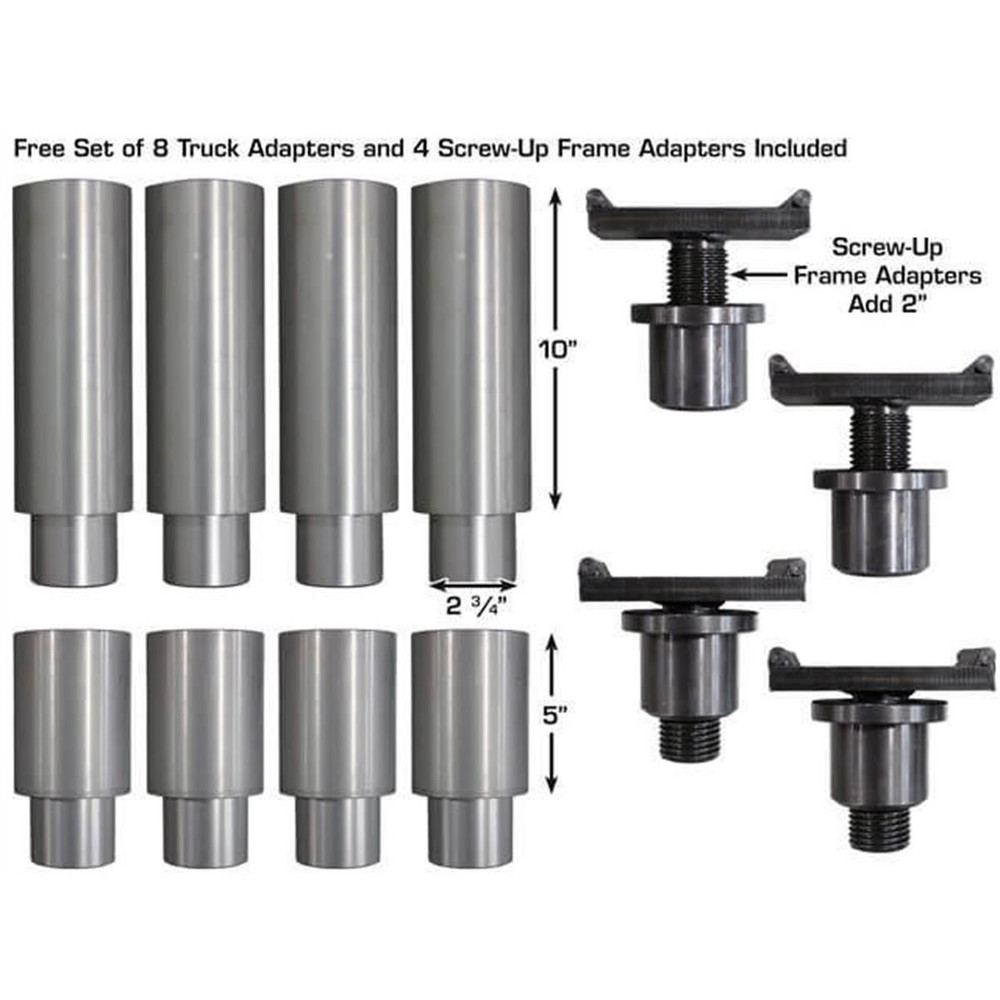

- Free 8 Piece Truck Adapter Set and 4 Screw-Up Frame Adapters
- Heavy Duty 3/8″ Equalization Cables
- Mounting Hardware Included
- Standard with Premium ALLY Power unit

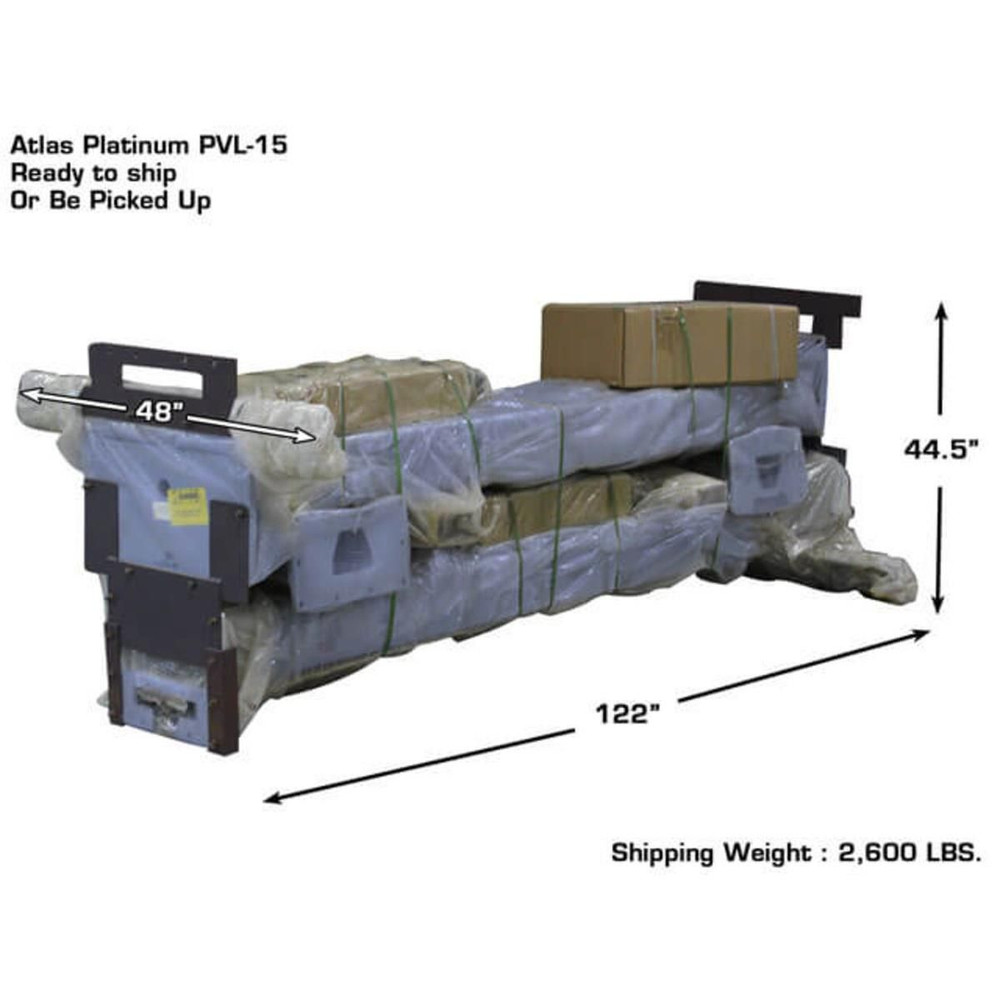

- Shipping Weight: 2,600 lbs.
- 5 yr Structural ‐ 2 yr Hydraulic ‐ 2 yr Power unit Warranty
- This part number Freight Prepaid
Atlas® Platinum PVL15 Specifications
- Capacity 15,000 LB.

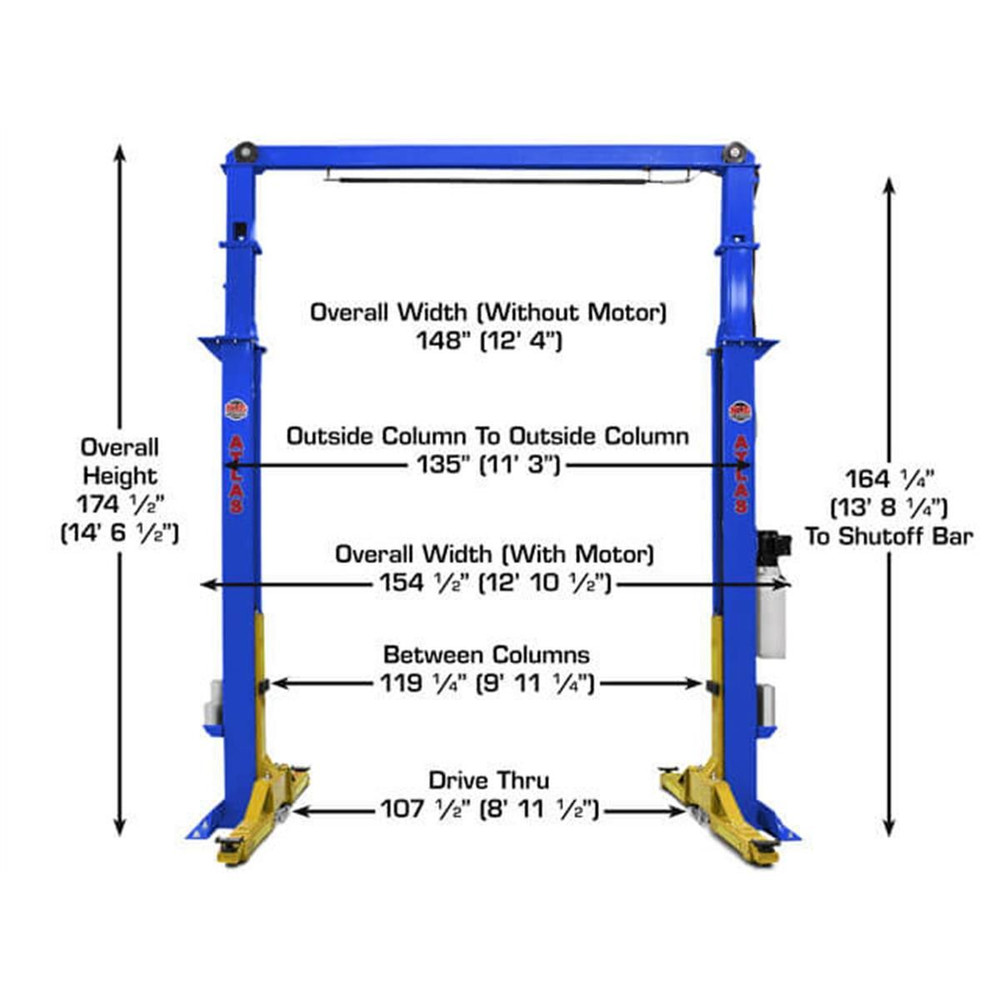

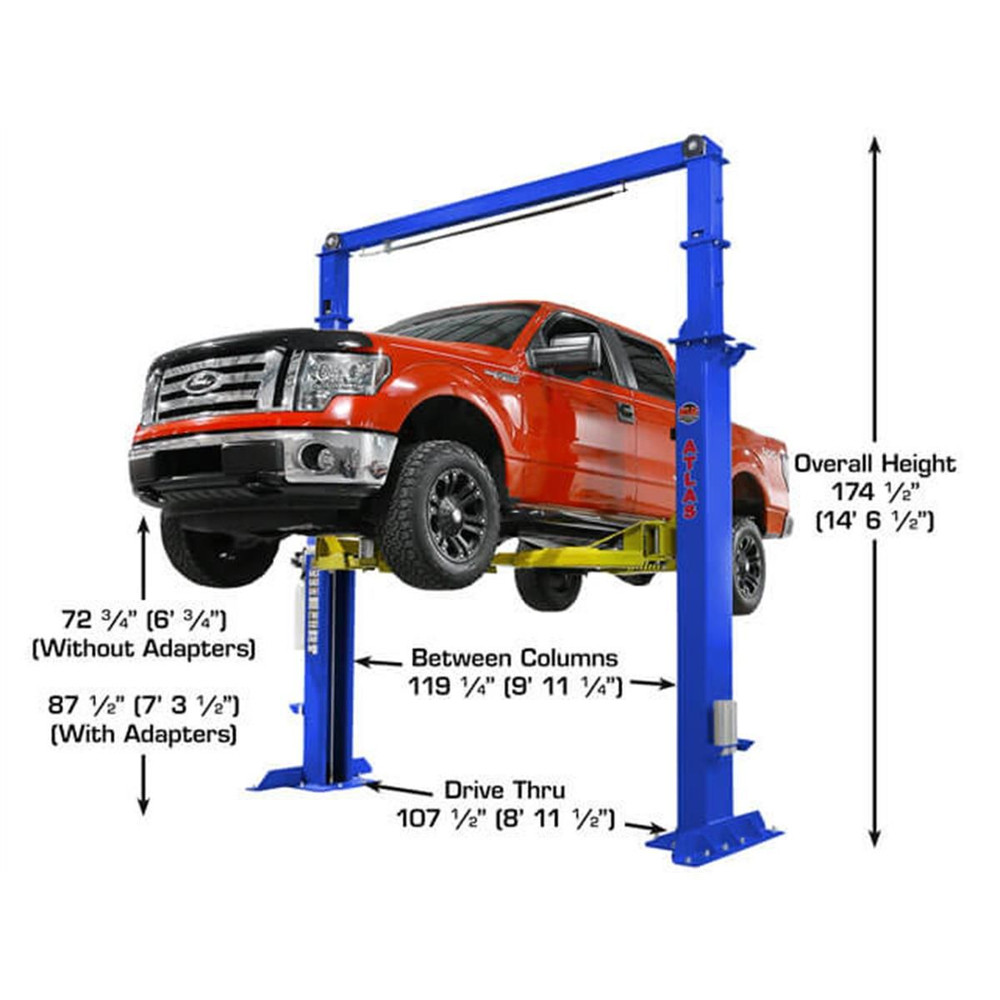

- Overall Height 174 1/2″ (14′ 6 1/2”)
- Overall Floor Width 148″ (12′ 4”)
- Outside Column to Outside Column 135″ (11′ 3″)

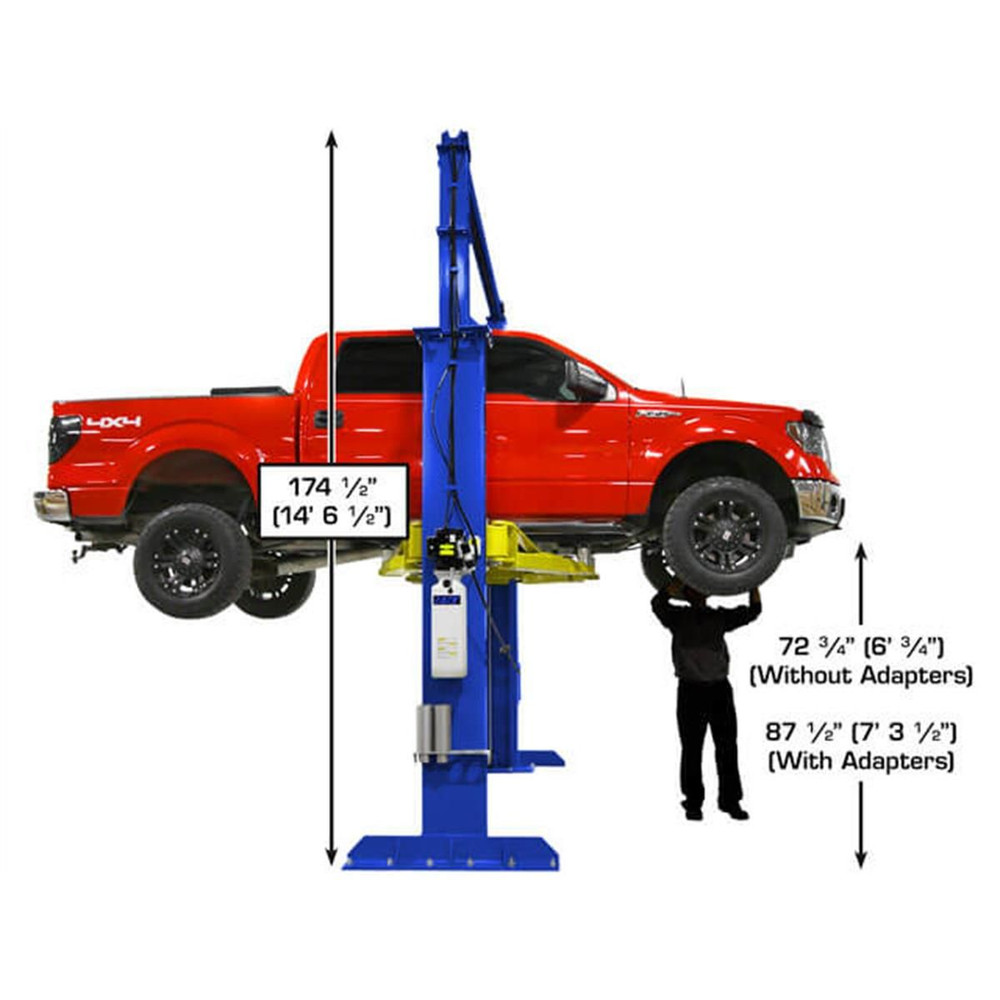

- Maximum Lift Height (Without Adapters) 72 3/4″
- Maximum Lift Height (With Adapters) 87 1/2″
- Minimum Arm Height 6″
- Inside Column 119 1/4” (9′ 11 1/4”)
- Drive Thru 107 1/2” (8′ 11 1/2”)
- Column Size 8″ x 14 1/2″
- Column Thickness of Steel 8mm

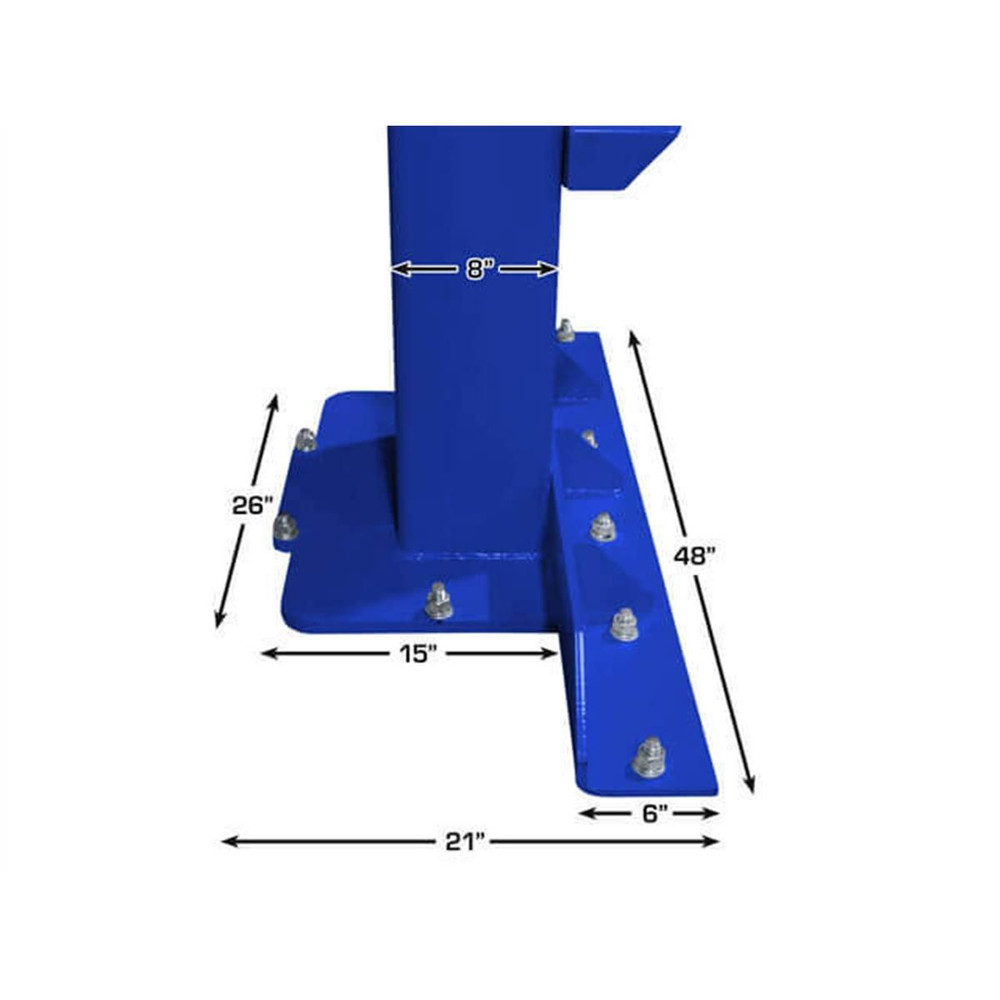

- Base Of Lift 21″ x 48″
- Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
- Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight 2,600 LBS.

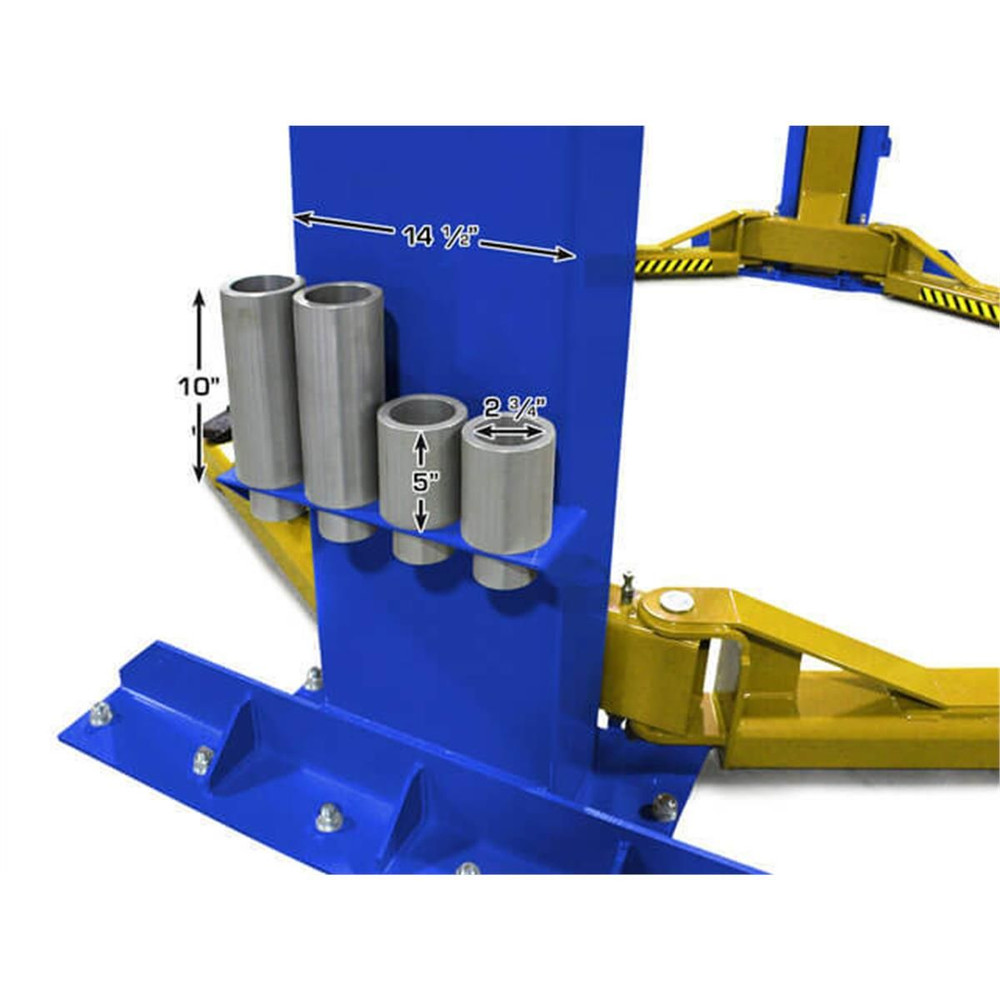

- Adapter Heights 4 Each 5”, 10”
- Arm Hole/Adapter Peg Size 2.75”
- Requires a minimum of 6″ of concrete with a 3000 psi. rating
