Features and Benefits:
- 9,000 lb. Capacity
- Free Standing/Portable Design
- Extra Tall/Extra Wide/Extra Long
- Heavy Duty
- Single-Point Lock Release

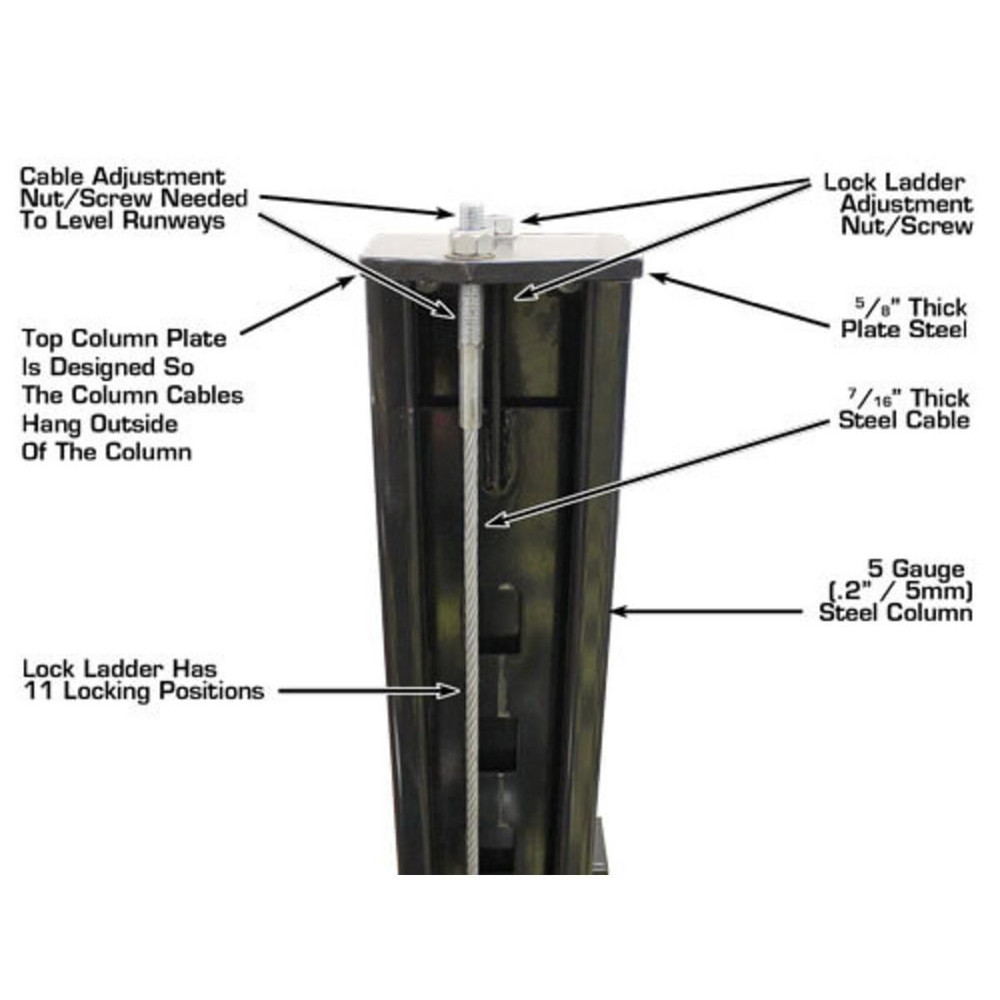

- Lock Ladder Design

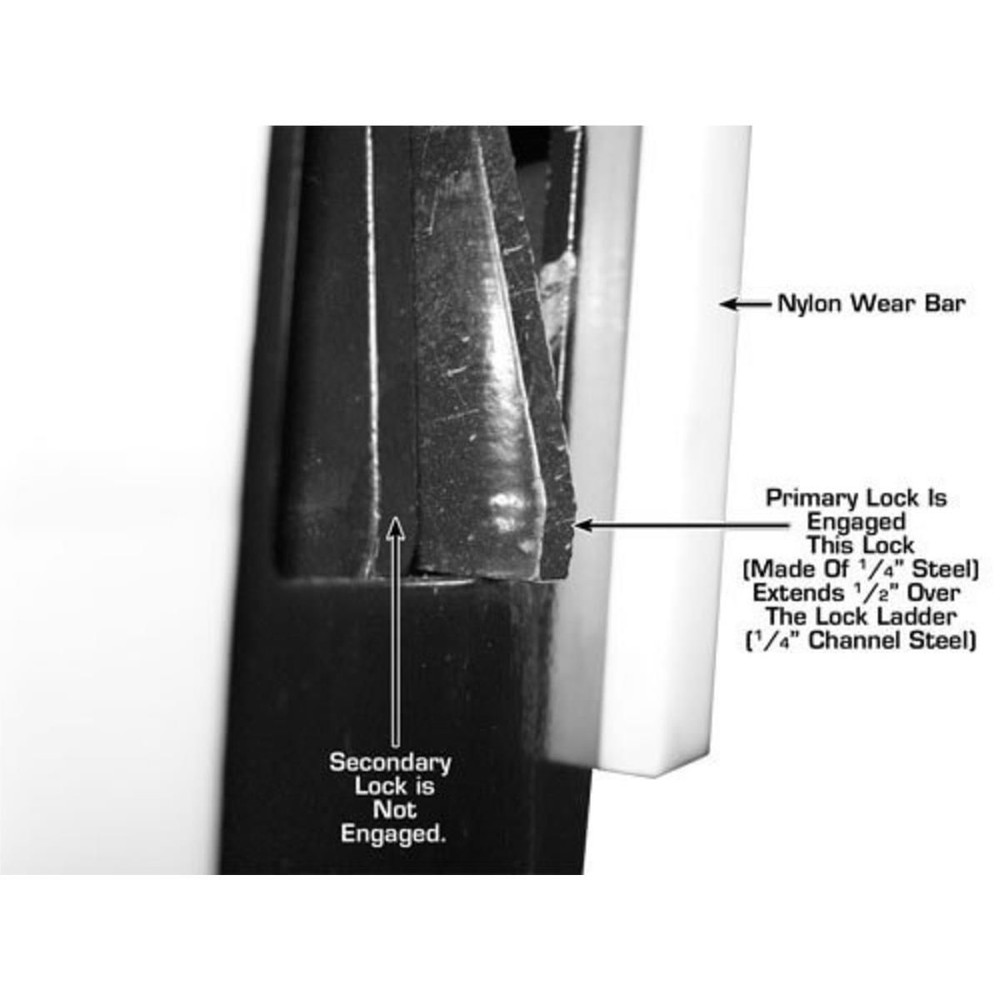

- Double Lock Safety System

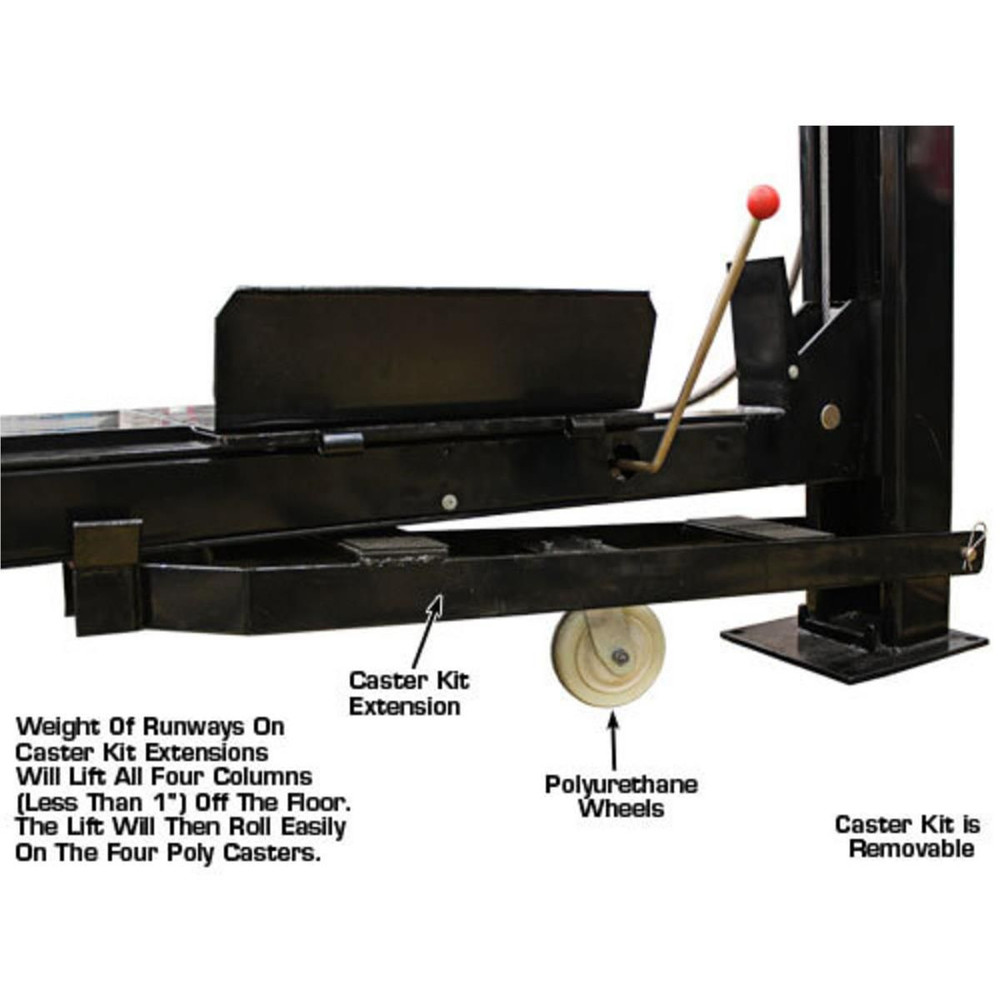

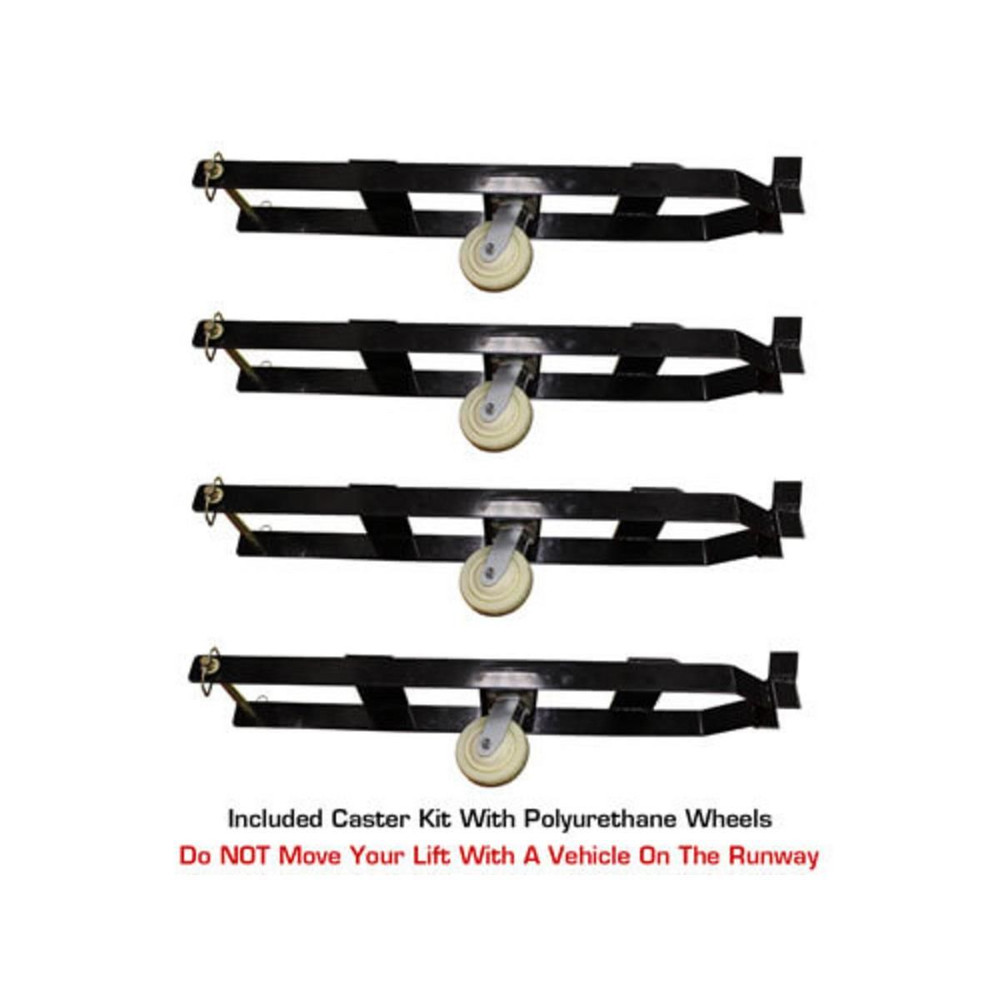

- Caster Kit With Polyurethane Wheels Included
- Steel Approach Ramps Included
- Steel Jack Tray Included

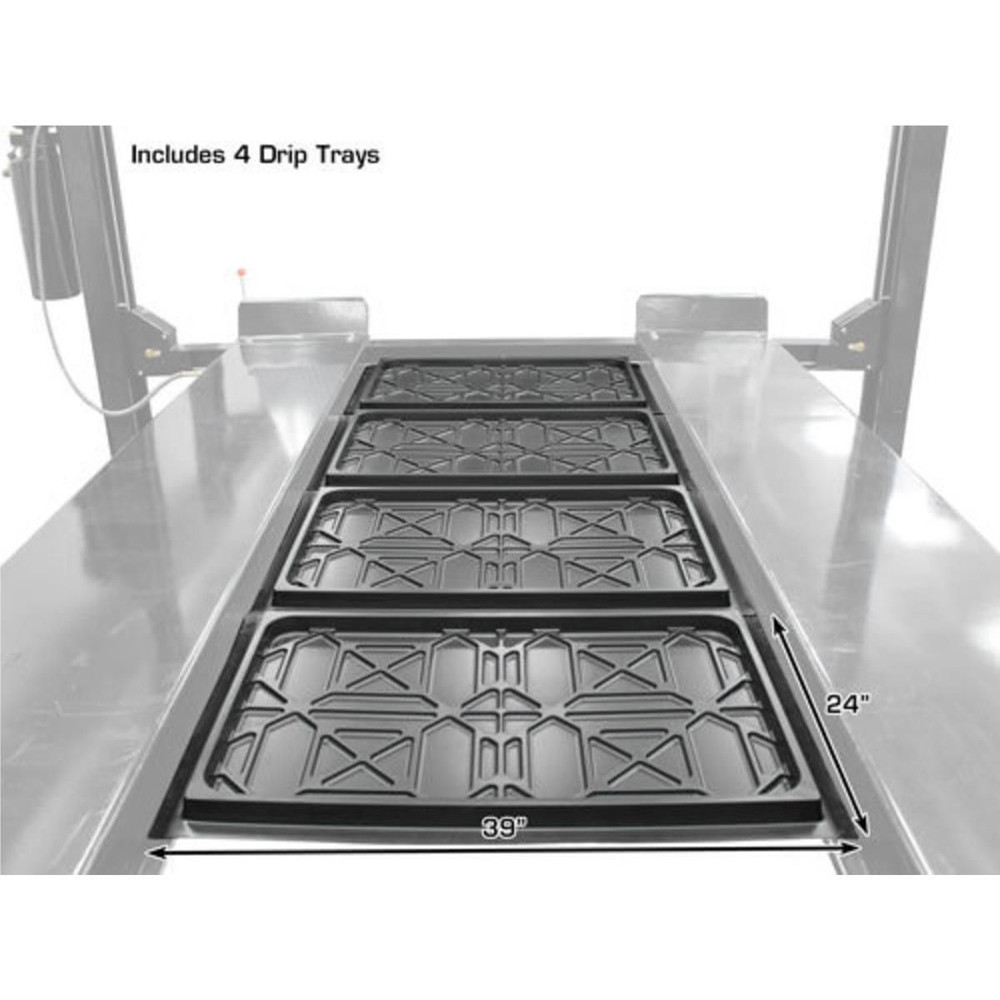

- 4 Plastic Drip Trays Included

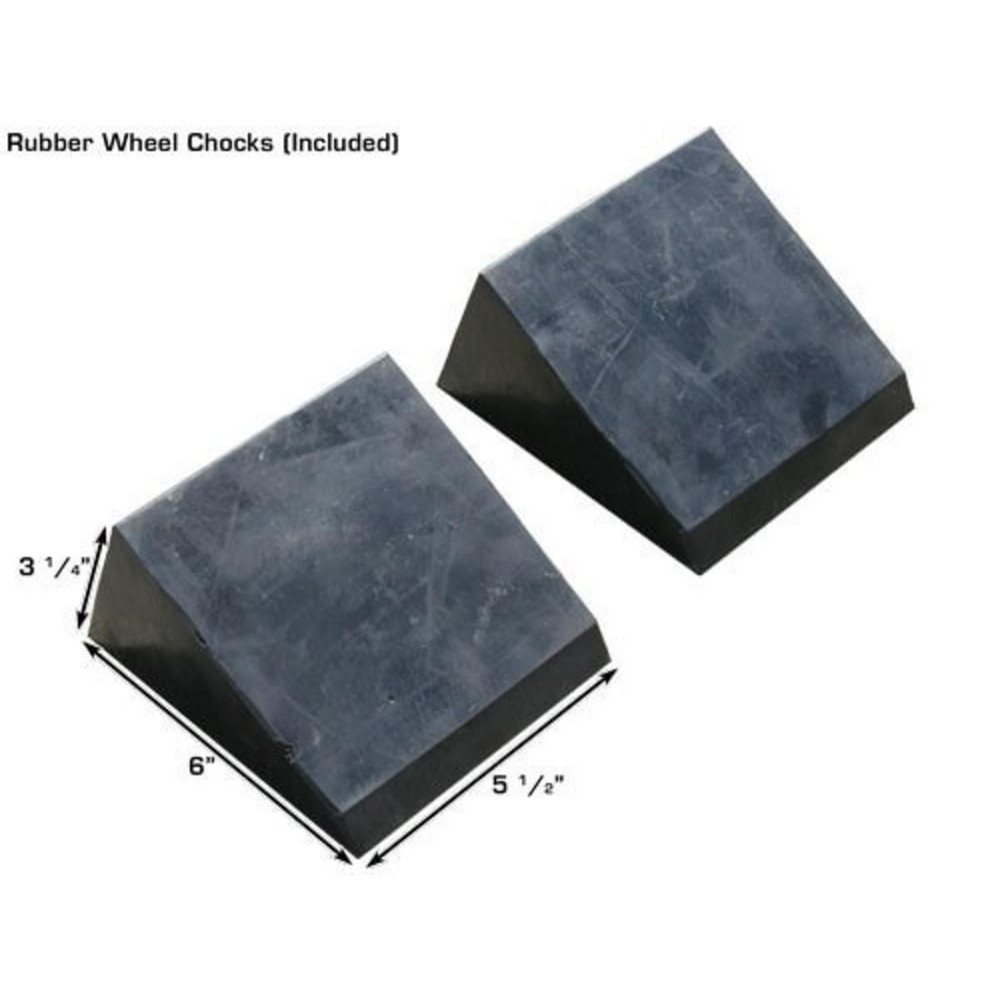

- 2 Rubber Wheel Chocks Included

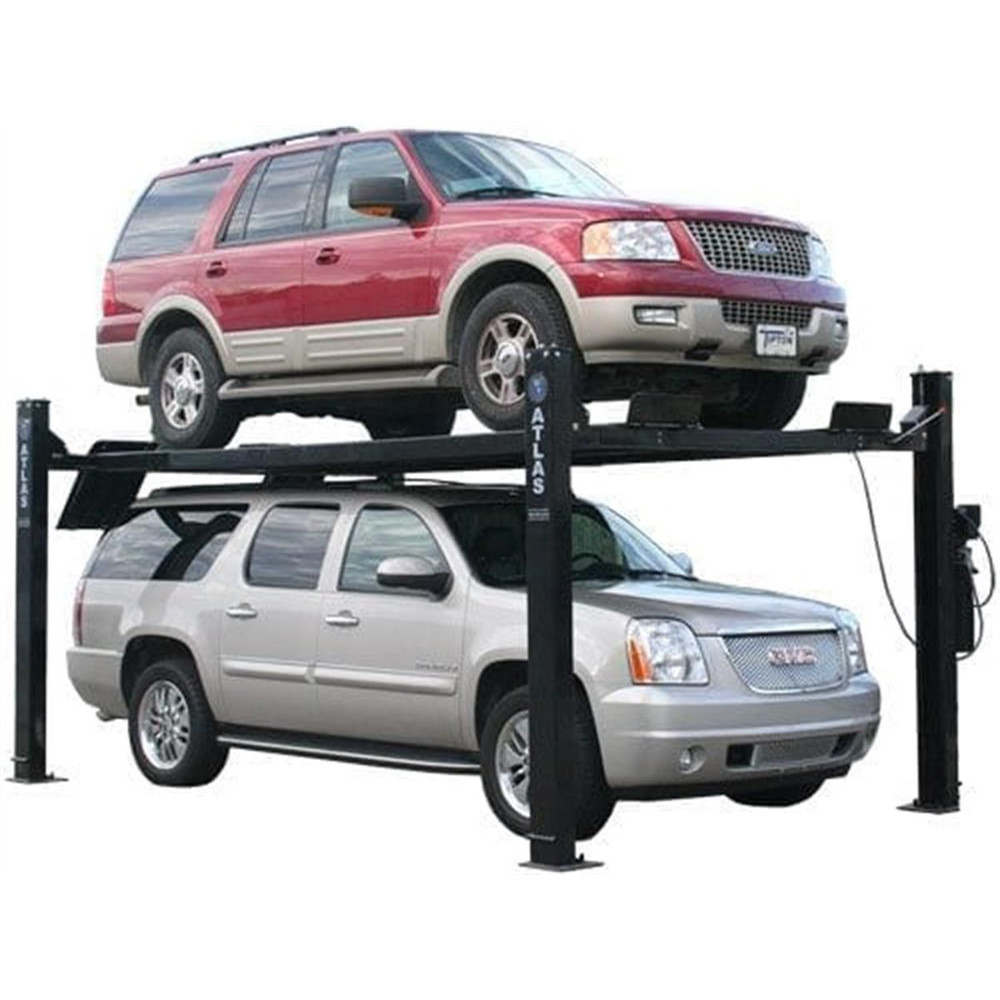

- Perfect For Storing Or Working On Vehicles
- 110volt Electric Operation (30 AMP BREAKER REQUIRED)
- Shipping Weight 2,300 lbs.
- 2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only
- This part number FREIGHT PREPAID

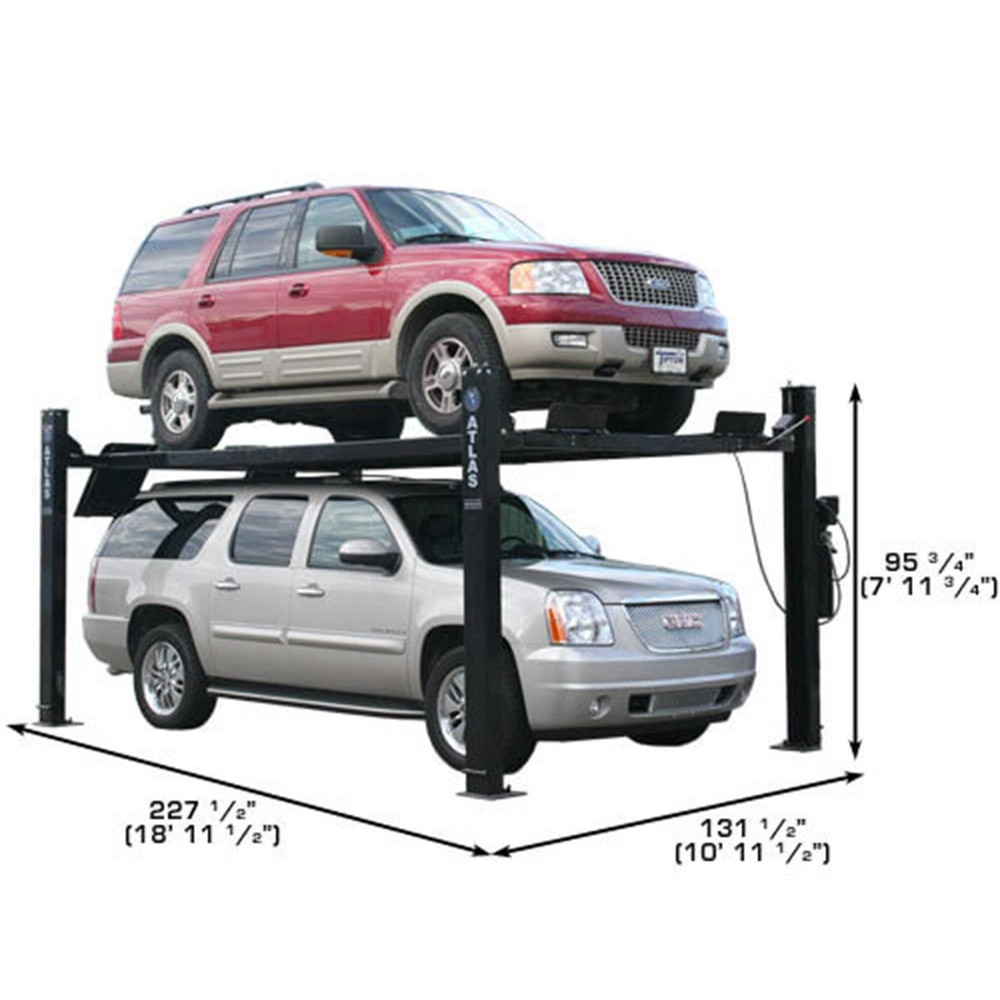

Atlas® Garage PRO9000 Specifications

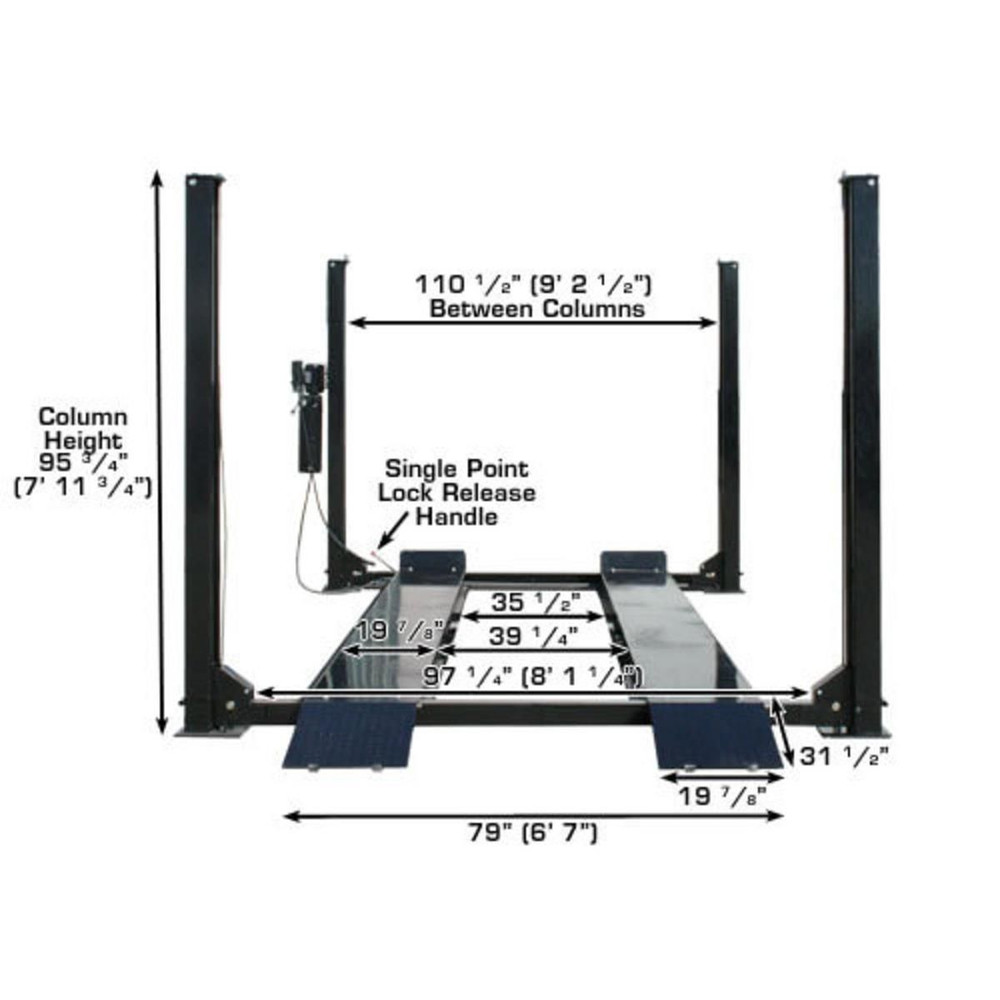

- Capacity 9,000 Lb.

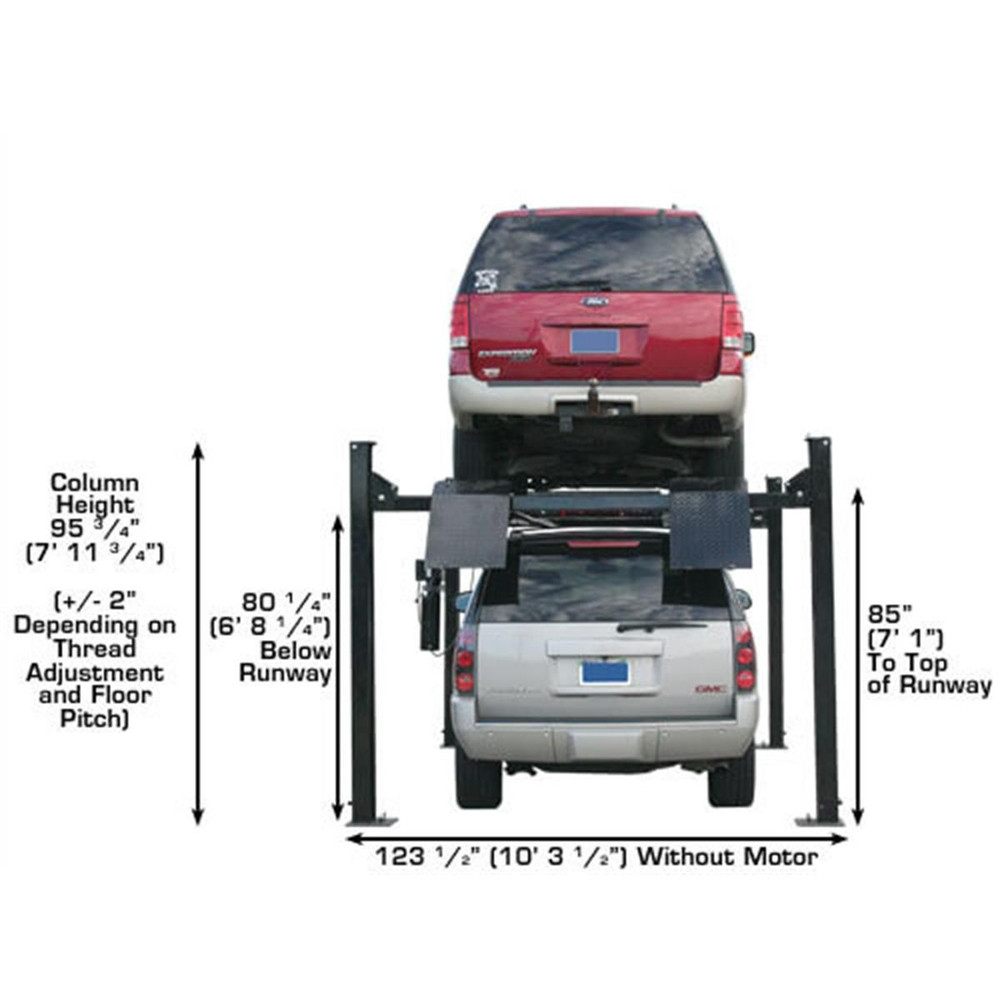

- Lifting Height To Top Of Runway 85″ (7′ 1″)

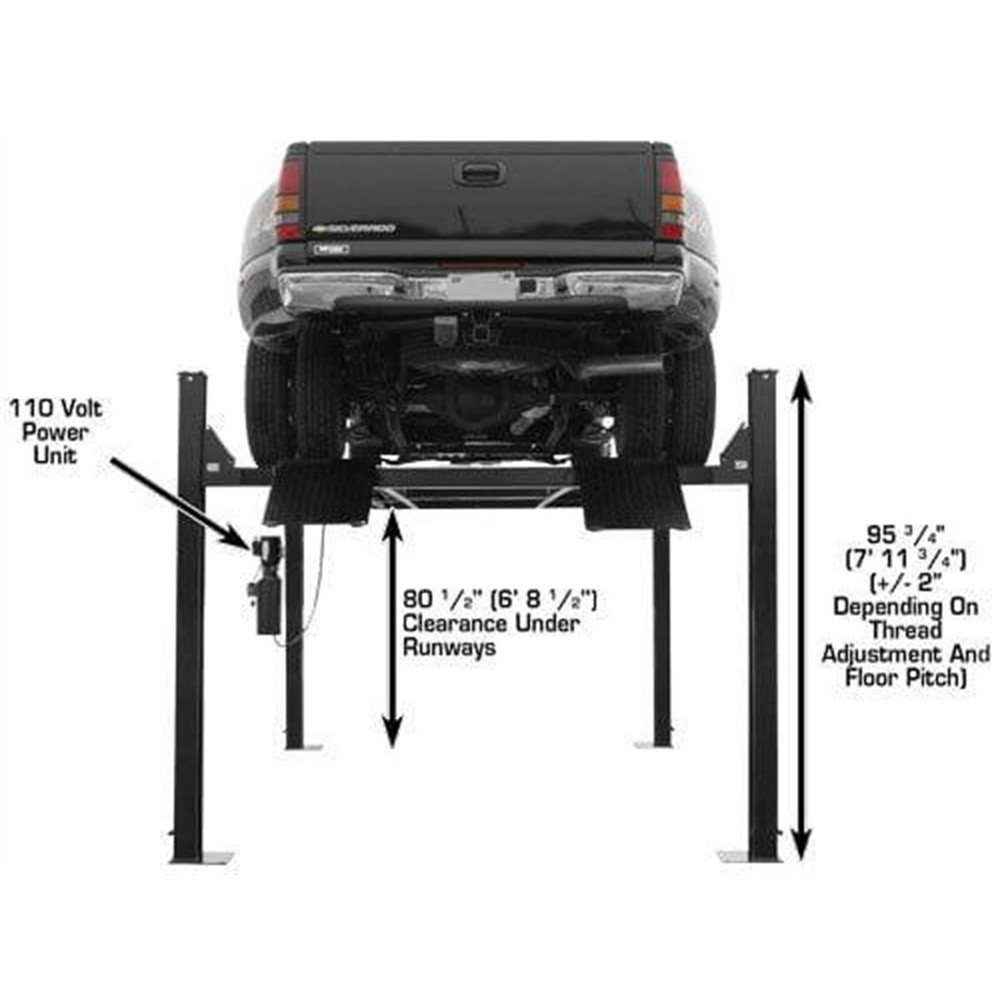

- Clearance Under Runways 80 1/4″ (6′ 8 1/4″)

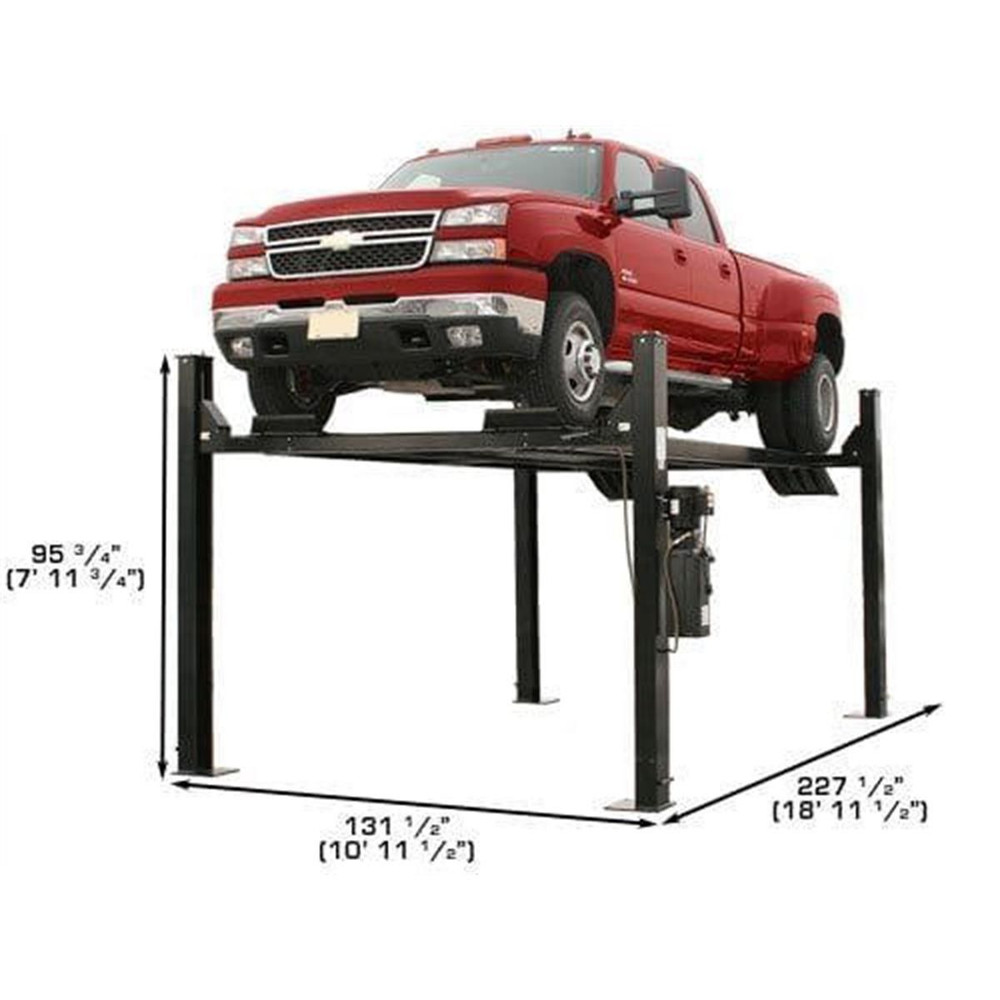

- Height Of Columns 95 3/4″ (7′ 11 3/4″)
- Overall Width (Without Motor) 123 1/2″ (10′ 3 1/2″)
- Overall Width (With Motor) 131 1/2″ (10′ 11 1/2″)

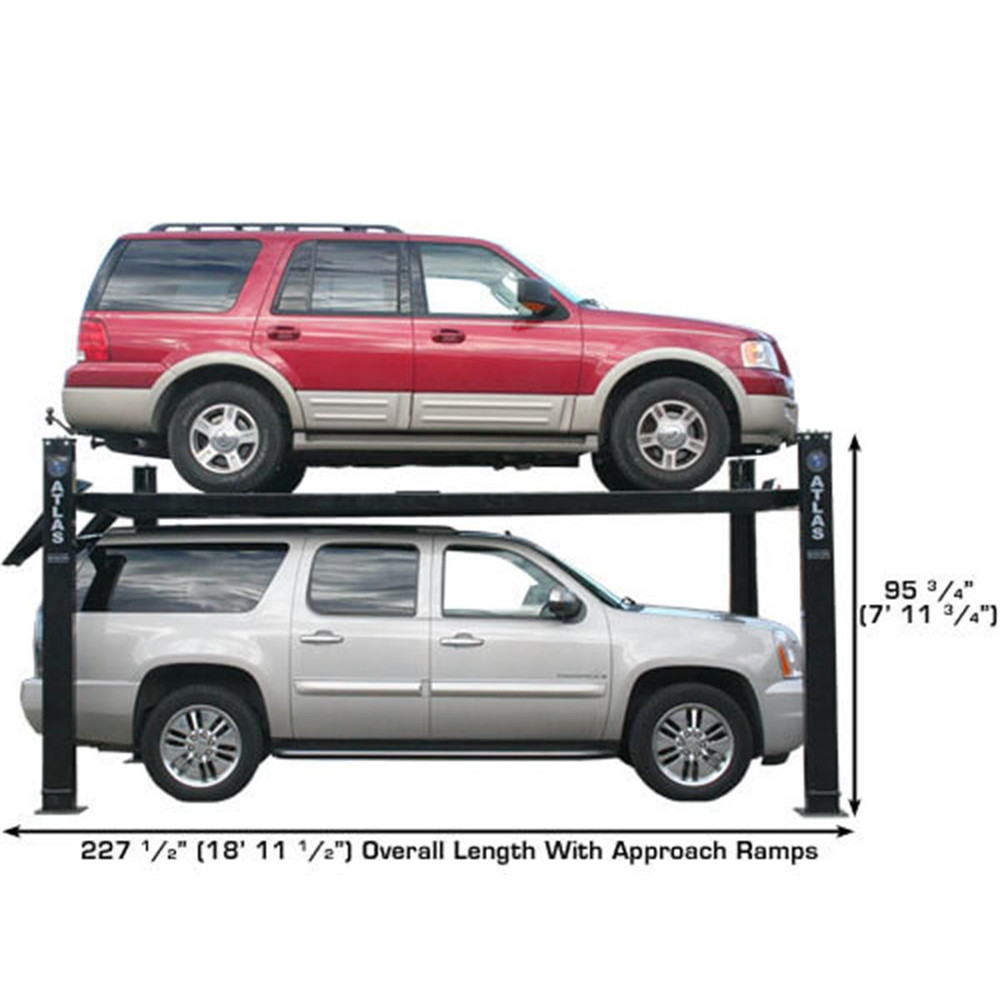

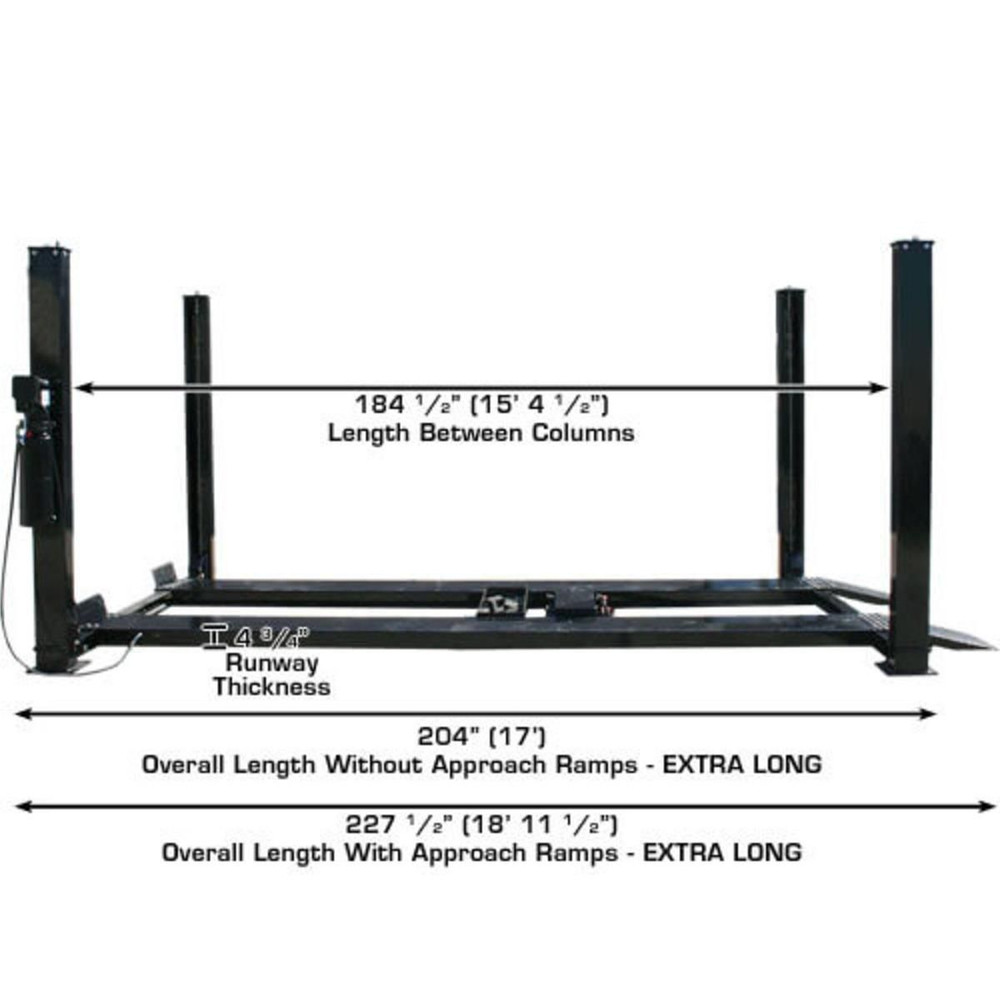

- Overall Length With Approach Ramp 227 1/2″ (18′ 11 1/2”)
- Approach Ramp 31″ (2′ 7″)

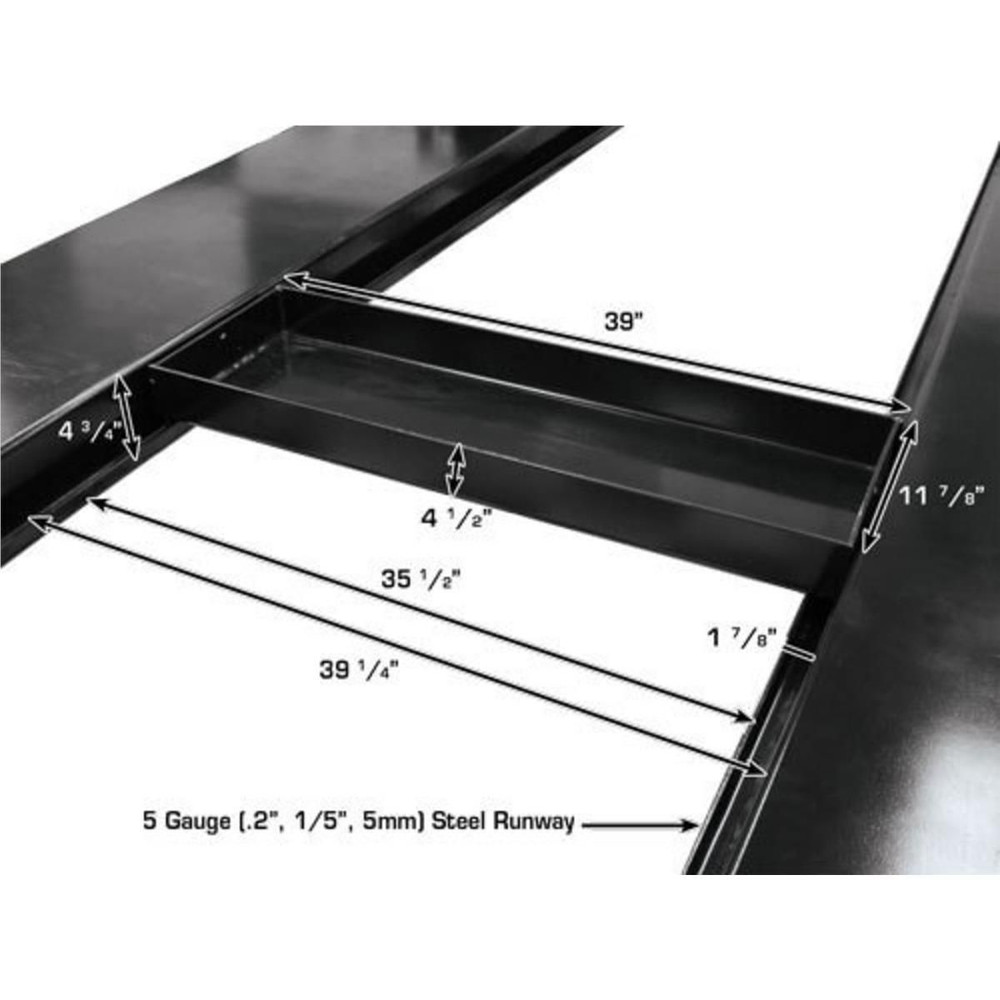

- Runway Width 21 1/4″ (w/ Rails) or 20″ (Driving Surface)
- Runway Length 199 1/2″ (16′ 7 1/2″)
- Runway Thickness 4 3/4″
- Width Between Runways 39 3/4″ (3′ 3 3/4″)
- Width Between Runway Rails 35 1/2″ (2′ 11 1/2″)
- Outside Runway To Outside Runway 79″ (6′ 7″)
- Clearance Between Columns 110 1/2″ (9′ 2 1/2″)
- Length Between Columns 184 1/2″ (15′ 4 1/2″)
- Maximum Wheel Base 187″ (15′ 7″)
- Drive Thru (Outside Of Tire To Outside Of Tire) 97 1/4″ (8′ 1 1/4″)
- Motor/Electrical Requirement 110 Volt, 30 AMP BREAKER REQUIRED
- Shipping Weight 2,300 lb.
